FRONT SASH MOLDING REMOVAL

id091600805000

Warning

•  Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

1.  Remove the following parts:

(1)  Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION.)

(2)  Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)

(3)  Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION.)

Caution

•  When removing the double-sided adhesive tape, be careful not to damage the clip.

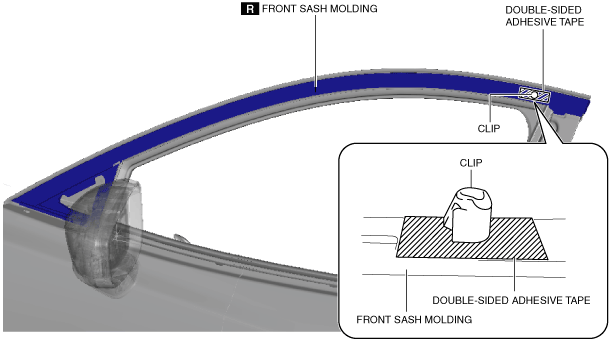

2.  Using a utility knife, carefully remove the double-sided adhesive tape in the locations shown in the figure.

am3uuw00011774

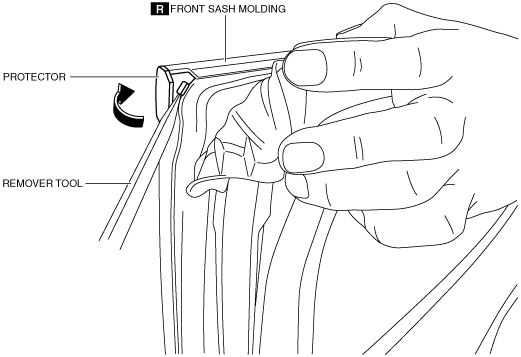

3.  Insert a remover tool into the position shown in the figure, move it in the direction of the arrow, and remove the protector.

am3uuw00011775

4.  Insert a remover tool into the position shown in the figure, move it in the direction of the arrow, and remove the clip.

am3zzw00020682

5.  Pull the front sash molding in the direction of the arrows in the order of (1), (2), and (3) shown in the figure and remove it.

am3uuw00011777
