REAR CONSOLE DISASSEMBLY/ASSEMBLY
id091700898600
1. Disassemble in the order indicated in the table.

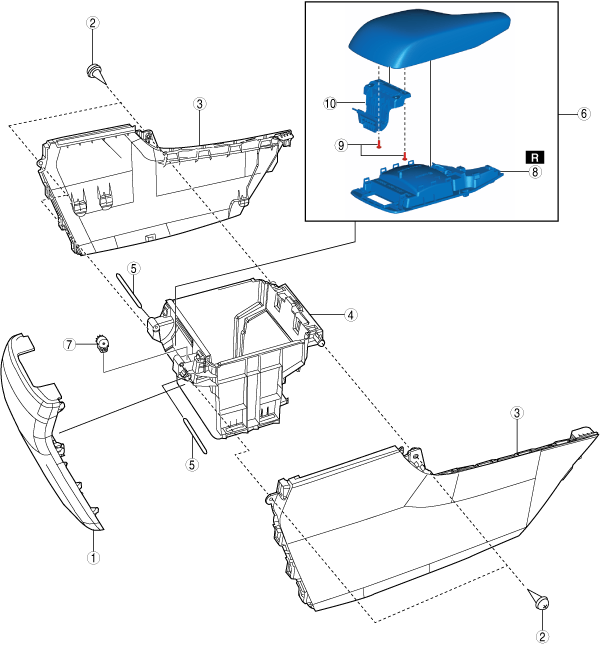

Without Electric Parking Brake
am3zzw00020144
|
|
1
|
Console panel
|
|
2
|
Screw
|
|
3
|
Side panel
(See Side Panel Removal Note.)
|
|
4
|
Rear console box
|
|
5
|
Pin
|
|
6
|
Rear console lid
|
|
7
|
Damper
|
|
8
|
Console lid inner
|
|
9
|
Screw
|
|
10
|
Console lid hinge
|

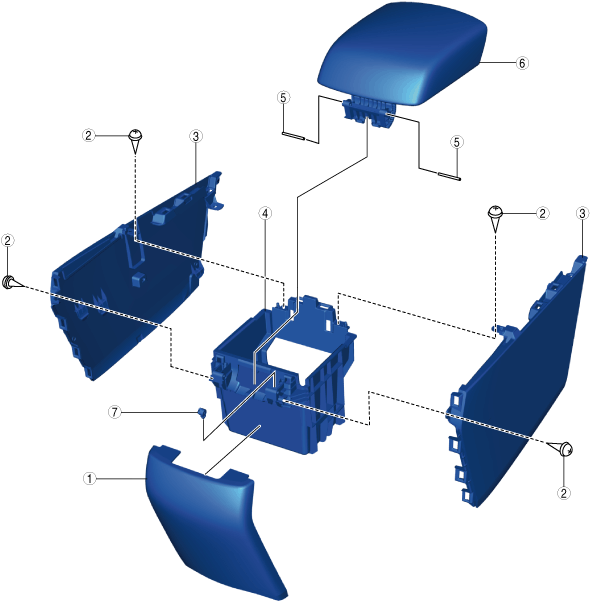

With Electric Parking Brake
am3zzw00019663
|
|
1
|
Console panel
|
|
2
|
Screw
|
|
3
|
Side panel
(See Side Panel Removal Note.)
|
|
4
|
Rear console box
|
|
5
|
Pin
|
|
6
|
Rear console lid
|
|
7
|
Damper
|
2. Assemble in the reverse order of disassembly.
Side Panel Removal Note

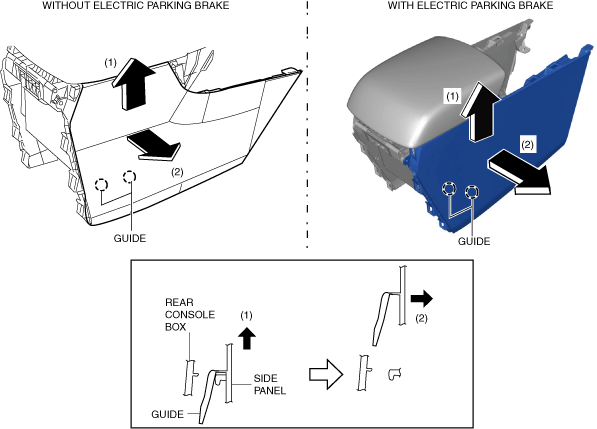

1. Move the side panel in the order of arrows (1) and (2) shown in the figure and remove the guides from the rear console box.
