REAR COMBINATION LIGHT REMOVAL/INSTALLATION

id091800801000

Note

•  Fogging or condensation on the inside of the rear combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the rear combination lights rises after illuminating a rear turn light or a period of time has elapsed.

4SD

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

2.  Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

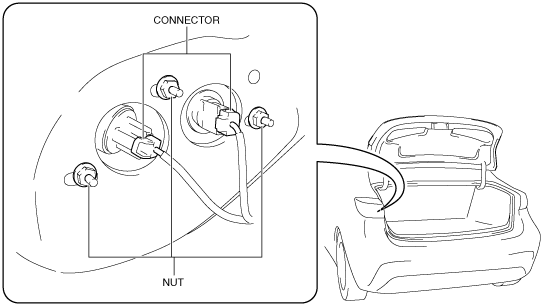

3.  Disconnect the connectors.

aaxjjw00020324

4.  Remove the nuts. (See Nut installation note.)

Caution

•  When removing the rear combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the rear combination light from the body, apply protective tape to the body.

5.  To prevent scratches or damage, affix protective tape to the position shown in the figure.

aaxjjw00020325

Caution

•  When removing the rear combination light from the body, the grommet could fall off and become lost. When removing the rear combination light from the body, verify that the grommet remains in the body.

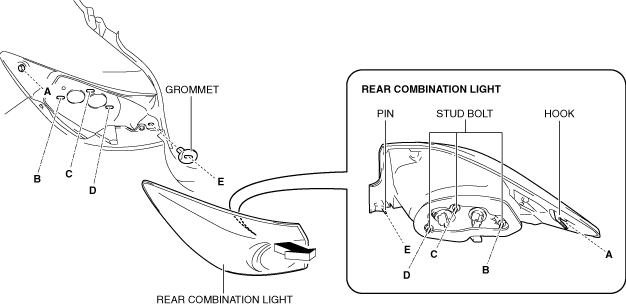

6.  Remove the rear combination light in the direction of the arrow shown in the figure.

aaxjjw00020326

7.  Remove the grommet. (See Grommet installation note.)

8.  Install in the reverse order of removal.

Nut installation note

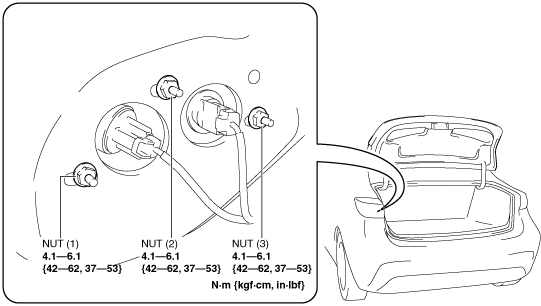

1.  Install the bolts in the order of (1), (2) and (3).

aaxjjw00020327

Grommet installation note

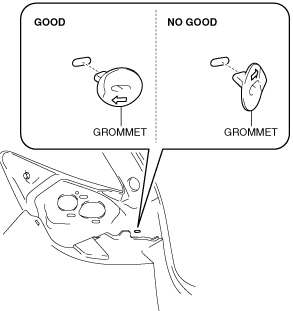

1.  Install the grommet with the arrow pointed outward of the vehicle.

aaxjjw00020328

5HB

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

2.  Perform the following procedure:

Rear combination light (LH) removal:

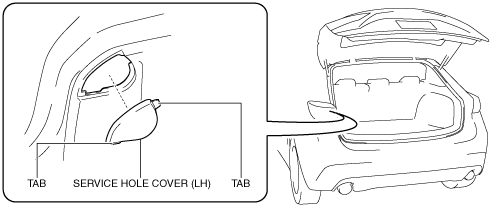

1.  Remove the service hole cover (LH).

aaxjjw00020329

Rear combination light (RH) removal:

1.  Turn the knob counterclockwise and release the lock.

am3zzw00019855

2.  Remove the service hole cover (RH).

3.  Disconnect the connectors.

aaxjjw00020331

4.  Remove the nuts. (See Nut installation note.)

Caution

•  When removing the rear combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the rear combination light from the body, apply protective tape to the body.

5.  To prevent scratches or damage, affix protective tape to the position shown in the figure.

aaxjjw00020332

Caution

•  When removing the rear combination light from the body, the grommet could fall off and become lost. When removing the rear combination light from the body, verify that the grommet remains in the body.

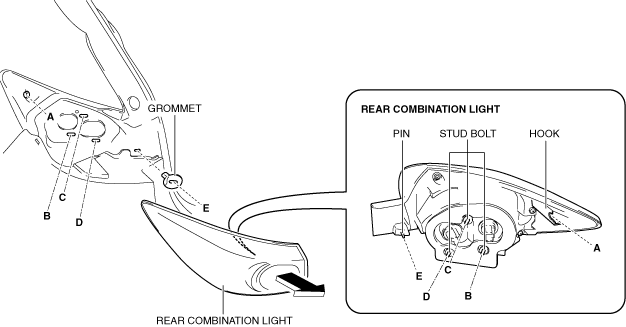

6.  Remove the rear combination light in the direction of the arrow shown in the figure.

aaxjjw00020333

7.  Remove the grommet. (See Grommet installation note.)

8.  Install in the reverse order of removal.

Nut installation note

1.  Install the bolts in the order of (1), (2) and (3).

aaxjjw00020334

Grommet installation note

1.  Install the grommet with the arrow pointed outward of the vehicle.

aaxjjw00020328
