LICENSE PLATE LIGHT REMOVAL/INSTALLATION

id091800801100

4SD

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

2.  Remove the trunk lid recess. (See TRUNK LID RECESS REMOVAL/INSTALLATION.)

3.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

aaxjjw00020335

5.  While pressing the license plate light hook in the direction of arrow (1) shown in the figure, press the license plate light in the direction of arrow (2), and detach the license plate light hook from the trunk lid.

aaxjjw00020336

Caution

•  When removing the license plate light from the trunk lid, the license plate light could fall off and be damaged. Remove the license plate light from the trunk lid while holding the license plate light on the lens side with a hand.

6.  Remove the license plate light.

7.  Install in the reverse order of removal.

5HB

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

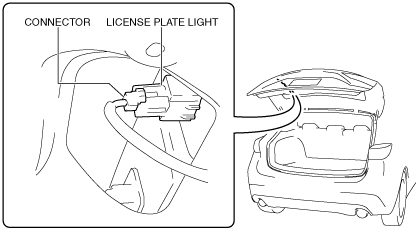

3.  Disconnect the connector.

aaxjjw00020337

4.  While pressing the license plate light tabs in the direction of arrows (1) shown in the figure, press the license plate light in the direction of arrow (2), and detach the license plate light tabs from the liftgate.

aaxjjw00020338

Caution

•  When removing the license plate light from the liftgate, the license plate light could fall off and be damaged. Remove the license plate light from the liftgate while holding the license plate light on the lens side with a hand.

5.  Remove the license plate light.

6.  Install in the reverse order of removal.
