FRONT FOG LIGHT REMOVAL/INSTALLATION

id091800802100

1.  Switch the ignition ON (engine off or on).

2.  Fully turn the steering wheel in the opposite direction of the side the front fog light is being removed.

3.  Switch the ignition off.

4.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

5.  Partially peel back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

6.  Disconnect the connector.

aaxjjw00020349

7.  Remove the screws.

aaxjjw00020350

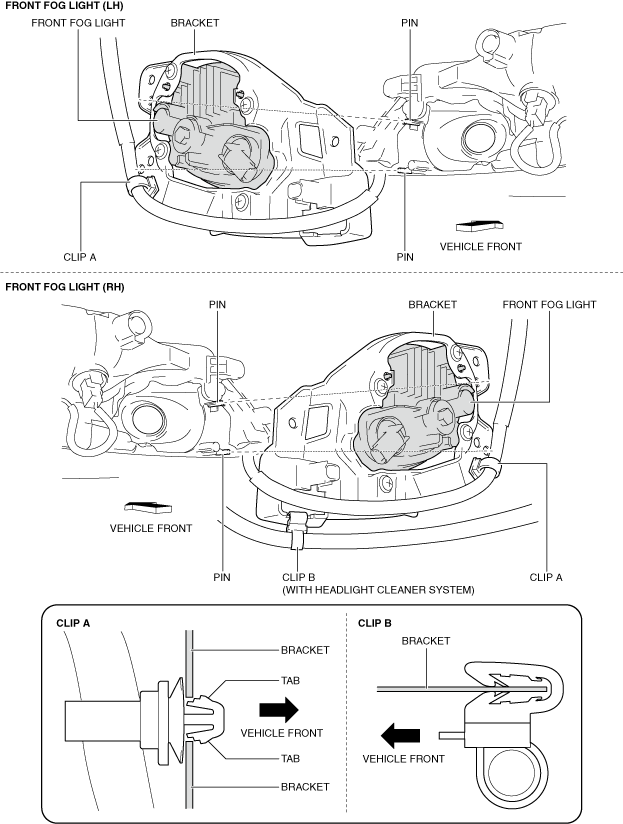

8.  Remove the clips.

aaxjjw00020351

9.  Remove the front fog light and the bracket as a single unit.

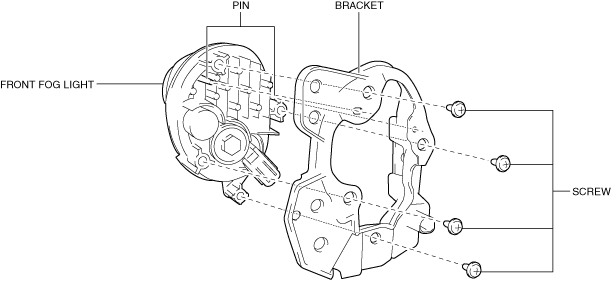

10.  Remove the screws.

aaxjjw00020352

11.  Remove the bracket.

12.  Remove the front fog light.

13.  Install in the reverse order of removal.

14.  Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING.)
