HEADLIGHT LEVELING SWITCH INSPECTION

id091800803700

Note

•  The headlight leveling switch is integrated with the cluster switch.

•  If the headlight leveling switch is to be replaced, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the following parts:

(1)  Driver's side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver's side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

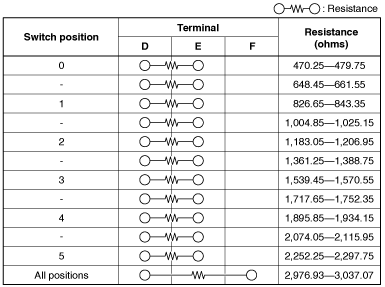

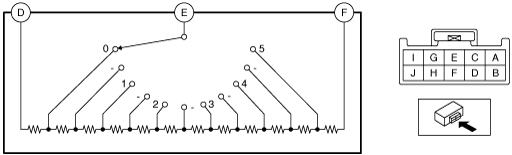

3.  Verify that the resistance between the cluster switch terminals is as indicated in the table.

am3uuw00010430

am3uuw00010431

•  If not as indicated in the table, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
