FRONT TURN LIGHT BULB REMOVAL/INSTALLATION

id091800805000

1.  Switch the ignition ON (engine off or on).

2.  Fully turn the steering wheel in the opposite direction of the side the front turn light bulb is being removed.

3.  Switch the ignition off.

4.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

5.  Partially peel back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

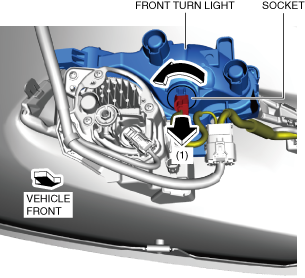

6.  Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

aaxjjw00020367

Caution

•  If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5%).

7.  Remove the front turn light bulb.

aaxjjw00020368

8.  Install in the reverse order of removal.
