REAR TURN LIGHT BULB REMOVAL/INSTALLATION

id091800813800


4SD

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

2.  Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

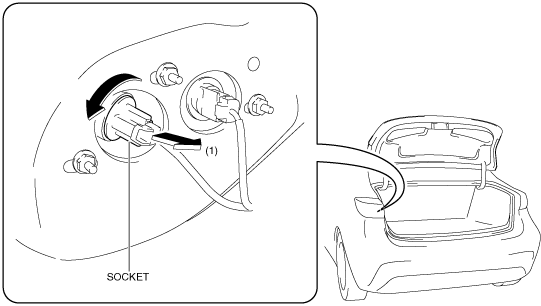

3.  Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

aaxjjw00020413

Caution
•  If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5%).

4.  Remove the rear turn light bulb.

aaxjjw00020414

5.  Install in the reverse order of removal.


5HB

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

2.  Perform the following procedure:

Rear turn light bulb (LH) removal:

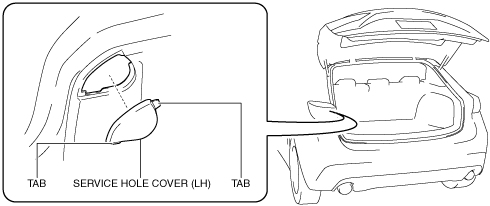

1.  Remove the service hole cover (LH).
aaxjjw00020415
Rear turn light bulb (RH) removal:

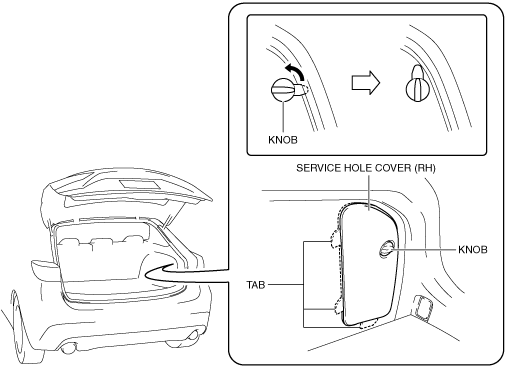

1.  Turn the knob counterclockwise and release the lock.
am3zzw00019856
2.  Remove the service hole cover (RH).

3.  Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

aaxjjw00020417

Caution
•  If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5%).

4.  Remove the rear turn light bulb.

aaxjjw00020414

5.  Install in the reverse order of removal.
