FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY
id091800816000
1. Disassemble in the order shown in the figure.

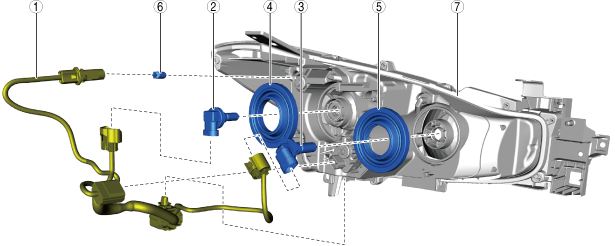

Bulb type (without running light system)
aaxjjw00020418
|
|
1
|
Short cord
(See Short Cord Removal Note.)
|
|
2
|
Headlight LO bulb
|
|
3
|
Headlight HI bulb
|
|
4
|
Cover No.1
(See Cover Installation Note.)
|
|
5
|
Cover No.2
(See Cover Installation Note.)
|
|
6
|
Parking light bulb
|
|
7
|
Front combination light
|

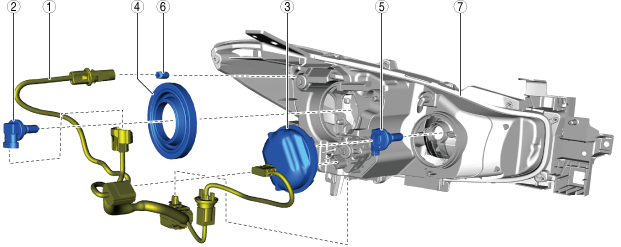

Bulb type (with running light system) (without front side marker light)
aaxjjw00020419
|
|
1
|
Short cord
(See Short Cord Removal Note.)
|
|
2
|
Headlight LO bulb
|
|
3
|
Cover No.1
(See Cover Installation Note.)
|
|
4
|
Cover No.2
(See Cover Installation Note.)
|
|
5
|
Headlight HI/Running light bulb
|
|
6
|
Parking light bulb
|
|
7
|
Front combination light
|
Bulb type (with front side marker light)
am3uuw00014164
|
|
1
|
Short cord
(See Short Cord Removal Note.)
|
|
2
|
Headlight LO bulb
|
|
3
|
Headlight HI/Running light bulb
|
|
4
|
Cover No.1
(See Cover Installation Note.)
|
|
5
|
Cover No.2
(See Cover Installation Note.)
|
|
6
|
Parking light/Front side marker light bulb
|
|
7
|
Front combination light
|

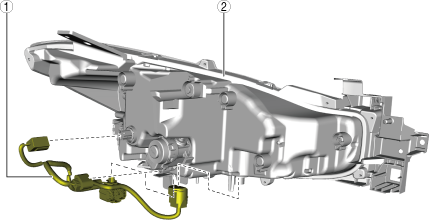

LED type (without front side marker light)
aaxjjw00020420
|
|
1
|
Short cord
(See Short Cord Removal Note.)
|
|
2
|
Front combination light
|

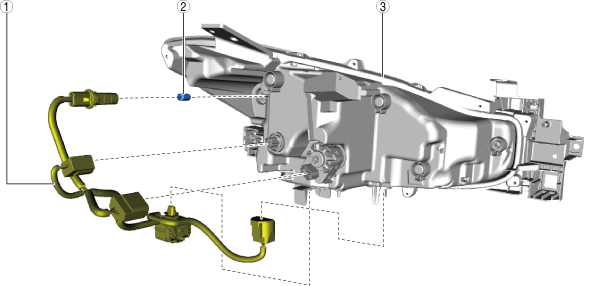

LED type (with front side marker light)
am3uuw00014165
|
|
1
|
Short cord
(See Short Cord Removal Note.)
|
|
2
|
Front side marker light bulb
|
|
3
|
Front combination light
|
2. Assemble in the reverse order of disassembly.

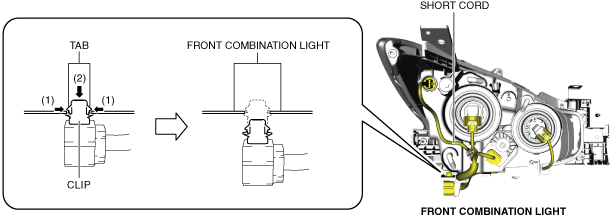

Short Cord Removal Note
1. While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the front combination light.
aaxjjw00020421
|
2. Pull the clip out of the front combination light and remove the short cord.
Cover Installation Note
1. Install the cover to the housing so that there is no gap between the housing and the cover.
aaxjjw00020422
|
