ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION

id092000812200

Without Center Display

L.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the following parts:

(1)  A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(3)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

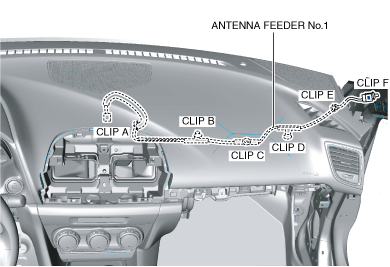

3.  Remove the clips A, B, C, D, E and F.

am3zzw00020652

4.  Remove the antenna feeder No.1.

5.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the following parts:

(1)  A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(3)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION.)

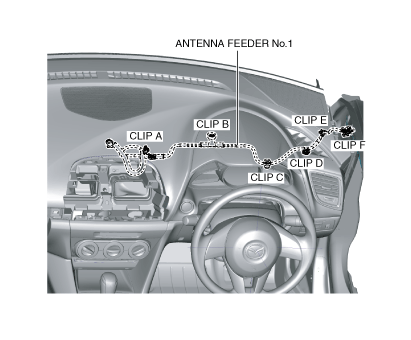

3.  Remove the clips A, B, C, D, E and F.

am3zzw00020653

4.  Remove the antenna feeder No.1.

5.  Install in the reverse order of removal.

With Center Display

L.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(4)  A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

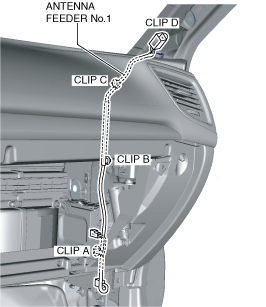

3.  Remove the clips A, B, C and D.

am3zzw00020654

4.  Remove the antenna feeder No.1.

5.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  A-pillar trim (RH) (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

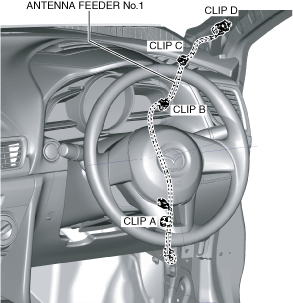

3.  Remove the clips A, B, C and D.

am3zzw00020655

4.  Remove the antenna feeder No.1.

5.  Install in the reverse order of removal.
