REAR MOUNT CAMERA REMOVAL/INSTALLATION

id092000814900

Caution

•  The connectivity master unit (CMU) determines the presence/non-presence of a rear mount camera and records it based on the communication status when the ignition is switched ON (engine off or on) or to the ACC position for the first time after the negative battery cable is connected.

•  If the negative battery cable is connected while the connectivity master unit (CMU) has recorded the non-presence of the rear mount camera and thereafter a rear mount camera is installed, the installed rear mount camera will not operate.

•  When installing or removing the rear mount camera, always disconnect the negative battery cable, and after the servicing is completed, switch the ignition to ACC or ON (engine off or on) to allow the connectivity master unit (CMU) to record the presence/non-presence of the rear mount camera.

4SD

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the trunk lid recess. (See TRUNK LID RECESS REMOVAL/INSTALLATION.)

3.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

am3zzw00020659

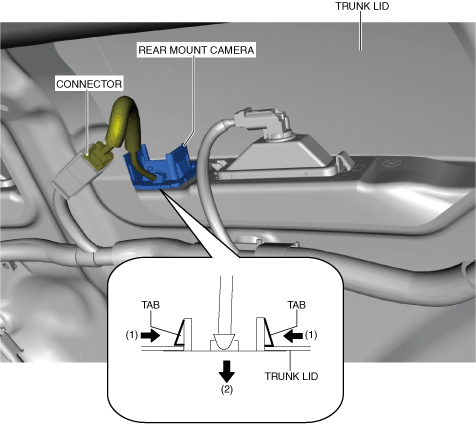

5.  Press the rear mount camera tabs in the direction of arrows (1) shown in the figure, press the rear mount camera in the direction of arrow (2) shown in the figure, and disengage the rear mount camera tabs from the trunk lid.

6.  Remove the rear mount camera.

7.  Install in the reverse order of removal.

5HB

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(5)  Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION.)

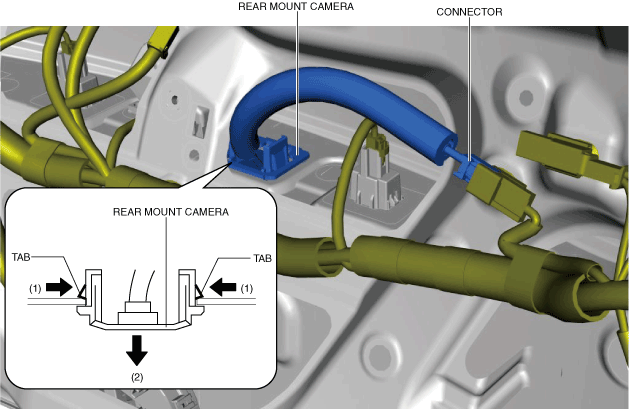

3.  Press the rear mount camera tabs in the direction of the arrows (1) shown in the figure, press the rear mount camera in the direction of the arrow (2) shown in the figure, and disengage the rear mount camera tabs from the liftgate.

am3zzw00020660

4.  Remove the rear mount camera.

5.  Install in the reverse order of removal.
