CD PLAYER [WITHOUT CENTER DISPLAY]

id0920z9113700


Purpose, Function

•  The CD player sends the audio signal and text data of the inserted CD to the audio unit.

Specification

Type

Playback function file
Music/MP3/WMA/AAC CD player
•  Music data (CD-DA)
•  MP3/WMA (Windows Media Audio)/AAC (Advanced Audio Coding) file


Construction

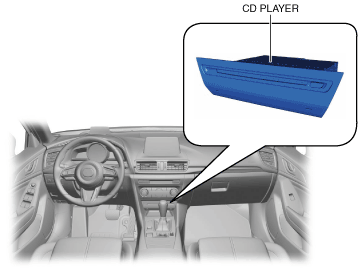

•  A CD player is installed to the front console.
am3zzn00005772

Input/output signal table

Terminal

Signal
1A
Ground
1B
—
1C
—
1D
Illumination (-)
1F
—
1G
Local MS-CAN (+)
1H
Local MS-CAN (-)
1J
Shield ground
1L
CD audio output LH (+)
1N
CD audio output LH (-)
1P
CD audio output RH (+)
1R
CD audio output RH (-)
1S
—
1T
—
1U
—
1V
—
1W
TNS signal input
1X
—
1Y
ACC
1Z
B+


Operation

•  For the CD player operation, refer to the ENTERTAINMENT SYSTEM. (See ENTERTAINMENT SYSTEM [WITHOUT CENTER DISPLAY].)

Fail-safe

•  Function not equipped.
