PARKING SENSOR INDICATOR LIGHT

id092200024500

Purpose

• Illuminates/flashes based on the signal from the parking assist unit..

Function

• Illuminates when the parking sensor system is operating, and flashes if there is a malfunction in the ultrasonic sensor circuit.

Construction

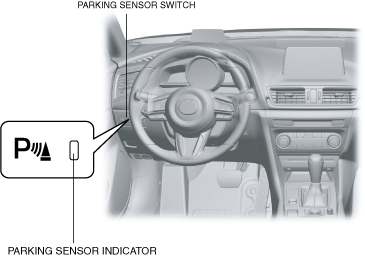

• The parking sensor indicator is built into the parking sensor switch.

am3zzn00006491

Operation

• For details on the parking sensor indicator operation/flashing, refer to PARKING SENSOR SYSTEM. (See PARKING SENSOR SYSTEM.)

Fail-safe

• Function not equipped.
