•  Sound is generated based on the signal from the parking assist unit.

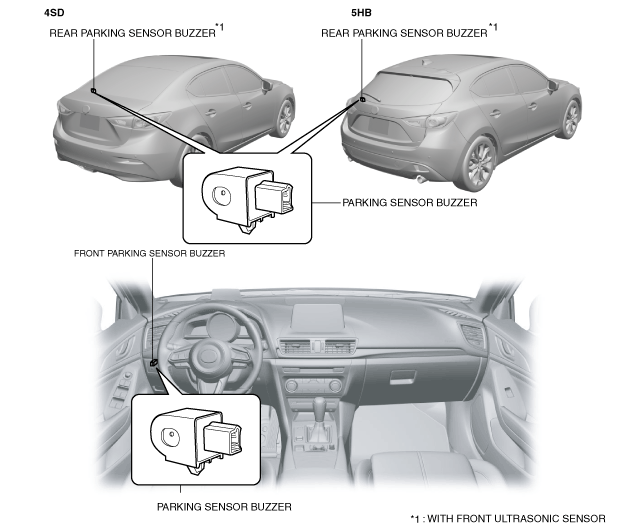

•  The parking sensor buzzers are provided for the front and rear^*1.

•  The front parking sensor buzzer is installed inside the driver-side lower panel.

•  The rear parking sensor buzzer is installed inside the rear package trim (4SD)/liftgate lower trim (5HB). (with front ultrasonic sensor)

am3zzn00006494

•  If the front ultrasonic sensor detects an obstruction, the front parking sensor buzzer sounds. (with front ultrasonic sensor)

•  If the rear ultrasonic sensor detects an obstruction, the rear parking sensor buzzer sounds.

•  For details on the parking buzzer operation, refer to PARKING SENSOR SYSTEM. (See PARKING SENSOR SYSTEM.)

•  Function not equipped.
