FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION

id092200030400

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the following parts:

(1)  Front scuff plate (driver-side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (driver-side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

3.  Remove the bolt.

am3uuw00011538

4.  Pull the driver-side lower panel in the direction of the arrow in the order of (1), (2) while detaching clips, hooks and pin.

5.  Set the driver-side lower panel aside.

6.  Remove the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

7.  Disconnect the connector.

am3zzw00014296

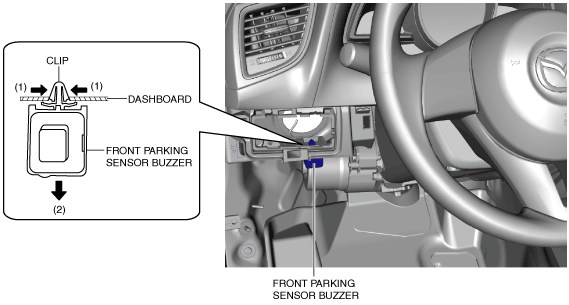

8.  Pull out the front parking sensor buzzer in the direction of arrow (2) shown in the figure while pressing the clip in the direction of arrow (1) shown in the figure, detach the clip and dashboard, and remove the front parking sensor buzzer.

am3zzw00014297

9.  Install in the reverse order of removal.
