REAR ULTRASONIC SENSOR SHORT-CORD INSPECTION

id092200031900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

(3)  Rear ultrasonic sensor short-cord (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

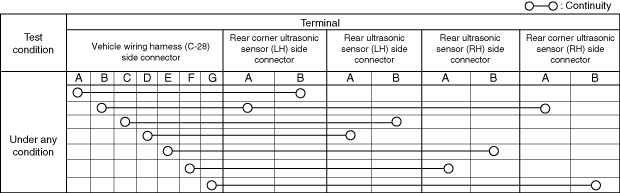

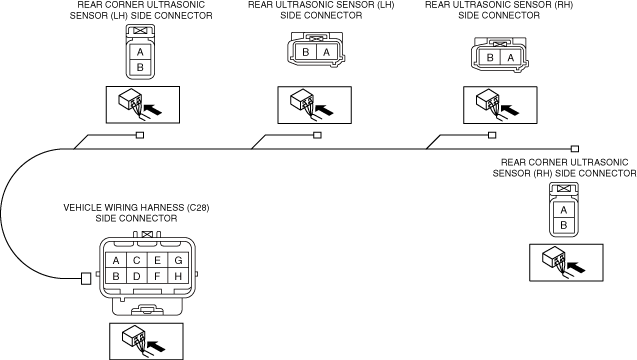

3.  Verify that the continuity between the rear ultrasonic sensor short-cord terminals is as indicated in the table.

am3zzw00019676

am3zzw00019677

•  If not as indicated in the table, replace the rear ultrasonic sensor short-cord. (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
