PARKING ASSIST UNIT

id092200041700


Purpose, Function

•  The parking assist unit controls multiple systems based on the input/output signals.
•  The controlled functions are as follows:

Control Table

Control

Content

Reference
Parking sensor system
The parking sensor system detects obstructions in the blind spot (vehicle rear/rear corners) to a wide extent using ultrasonic sensors and notifies the driver of the obstructions using the buzzer.
(See PARKING SENSOR SYSTEM.)
Driver attention alert system
The driver attention alert system warns the driver using the warning display and sound if it detects the driver's lack of attentiveness.
(See DRIVER ATTENTION ALERT SYSTEM.)
Smart city brake support [reverse] (SCBS R)
The smart city brake support [reverse] (SCBS R) detects vehicles or obstructions in the driver's blind spot using ultrasonic sensors at the rear of the vehicle while the vehicle is traveling in reverse at low speed, and the system applies the brakes automatically to reduce the damage from a possible collision.
(See SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R).)


Construction

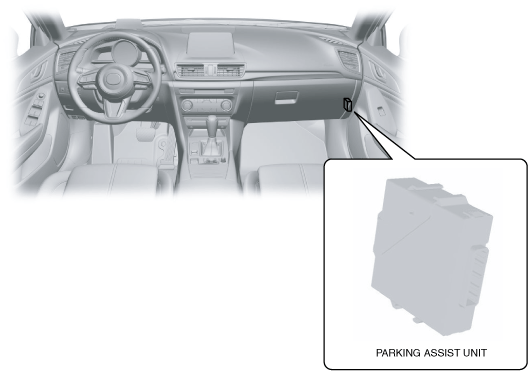

•  The parking assist unit is installed inside the glove compartment.
am3zzn00006496

Operation

•  For the parking assist unit operation, refer to the following systems.
―  Parking sensor system (See PARKING SENSOR SYSTEM.)
―  Driver attention alert system (See DRIVER ATTENTION ALERT SYSTEM.)
―  Smart city brake support [Reverse] (SCBS R) (See SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R).)

Fail-safe

•  Not applicable
