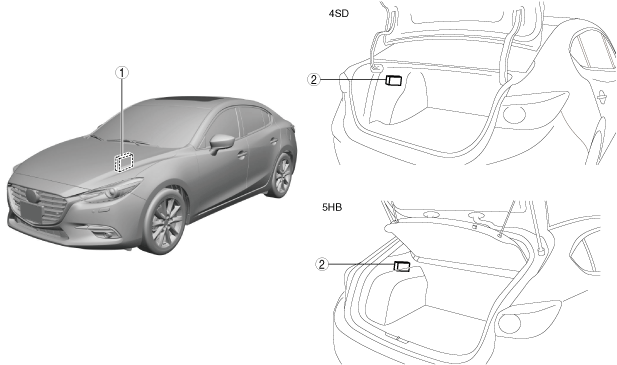

CONTROL SYSTEM LOCATION INDEX

id094000801000

am3zzw00020174

1

Front body control module (FBCM) (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION.) (See FRONT BODY CONTROL MODULE (FBCM) INSPECTION.) (See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING READ/WRITE FUNCTION).) (See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING AS-BUILT DATA).)

2

Rear body control module (RBCM) (See REAR BODY CONTROL MODULE (RBCM) REMOVAL/INSTALLATION.) (See REAR BODY CONTROL MODULE (RBCM) INSPECTION.) (See REAR BODY CONTROL MODULE (RBCM) BRACKET REMOVAL/INSTALLATION.) (See REAR BODY CONTROL MODULE (RBCM) CONFIGURATION (USING READ/WRITE FUNCTION).) (See REAR BODY CONTROL MODULE (RBCM) CONFIGURATION (USING AS-BUILT DATA).) (See CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
