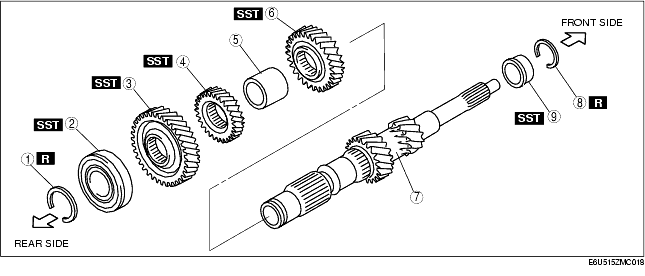

1. Disassemble in the order shown in the figure.
|
1
|
Snap ring
|
|
2
|
Rear bearing
|
|
3
|
6th gear
|
|
4
|
3rd gear
(See 3rd Gear Disassembly Note.)
|
|
5
|
Spacer
|
|
6
|
4th gear
(See 4th Gear Disassembly Note.)
|
|
7
|
Primary shaft
|
|
8
|
Snap ring
|
|
9
|
Front bearing inner race
|
1. Remove the 6th gear and rear bearing at the same time using the SSTs and a press.
1. Remove the 3rd gear using the SSTs and a press.
1. Remove the 4th gear using the SSTs and a press.
1. Remove the front bearing inner race using the SST and a press.
