SECONDARY SHAFT (NO.1) COMPONENTS DISASSEMBLY
D6E051517040105

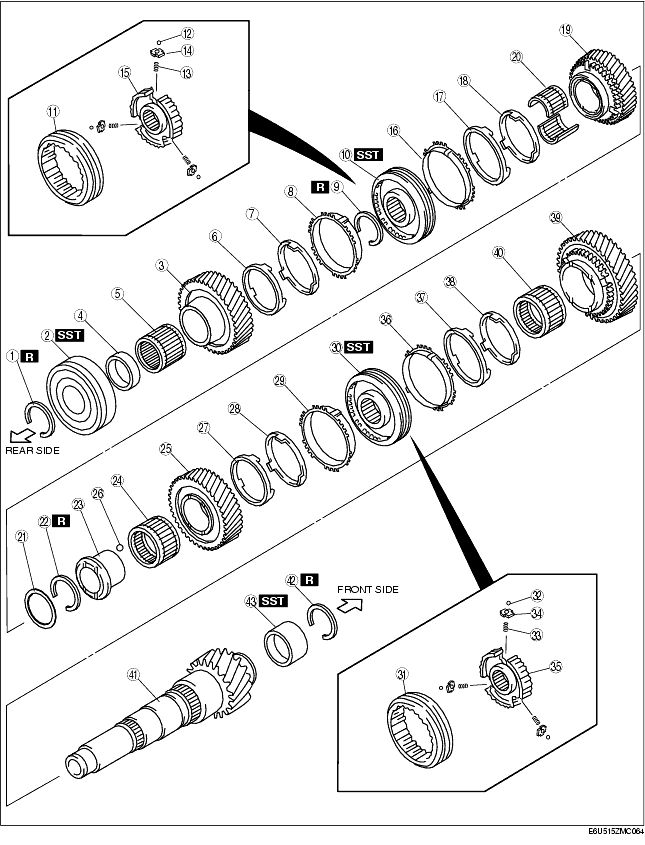

1. Disassemble in the order shown in the figure.
|
1
|
Snap ring
|
|
2
|
Rear bearing
|
|
3
|
3rd gear
|
|
4
|
Spacer
|
|
5
|
3rd needle bearing
|
|
6
|
3rd inner ring
|
|
7
|
3rd middle ring
|
|
8
|
3rd synchronizer ring
|
|
9
|
Snap ring
|
|
10
|
3rd/4th clutch hub component
|
|
11
|
Clutch hub sleeve
|
|
12
|
Steel ball
|
|
13
|
Spring
|
|
14
|
Synchronizer key
|
|
15
|
Clutch hub
|
|
16
|
4th synchronizer ring
|
|
17
|
4th middle ring
|
|
18
|
4th inner ring
|
|
19
|
4th gear
|
|
20
|
4th needle bearing
|
|
21
|
Spacer
|
|
22
|
Snap ring
|
|
23
|
2nd bearing inner race
|
|
24
|
2nd needle bearing
|
|
25
|
2nd gear
|
|
26
|
Steel ball
|
|
27
|
2nd inner ring
|
|
28
|
2nd middle ring
|
|
29
|
2nd synchronizer ring
|
|
30
|
1st/2nd clutch hub component
|
|
31
|
Clutch hub sleeve
|
|
32
|
Steel ball
|
|
33
|
Spring
|
|
34
|
Synchronizer key
|
|
35
|
Clutch hub
|
|
36
|
1st synchronizer ring
|
|
37
|
1st middle ring
|
|
38
|
1st inner ring
|
|
39
|
1st gear
|
|
40
|
1st needle bearing
|
|
41
|
Secondary shaft (No.1)
|
|
42
|
Snap ring
|
|
43
|
Front bearing inner race
|
Rear Bearing and 3rd Gear Disassembly Note

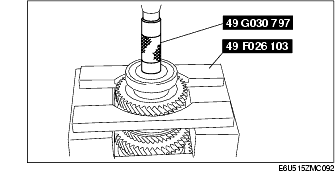

1. Remove the 3rd gear and rear bearing at the same time using the SSTs.
3rd/4th Clutch Hub Component and 4th Gear Disassembly Note

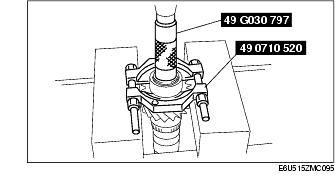

1. Remove the 4th gear and 3rd/4th clutch hub component at the same time using the SSTs and a press.
1st/2nd Clutch Hub Component and 1st Gear Disassembly Note
1. Remove the 1st gear and 1st/2nd clutch hub component at the same time using the SSTs and a press.
Front Bearing Inner Race Disassembly Note
1. Remove the front bearing inner race using the SSTs and a press.
