CLUTCH HOUSING AND TRANSAXLE CASE COMPONENTS DISASSEMBLY [TYPE B]
id051500803713

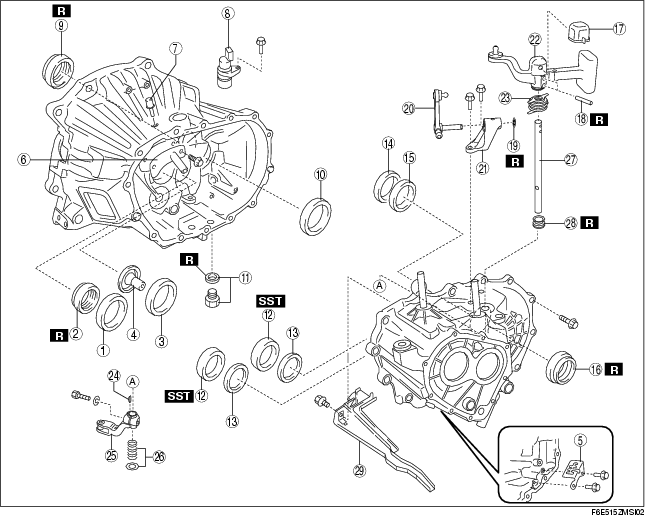

1. Disassemble in the order indicated in the table.
|
1
|
Bearing race (primary shaft)
|
|
2
|
Oil seal (primary shaft)
|
|
3
|
Bearing race (secondary shaft)
|
|
4
|
Funnel
|
|
5
|
Guide plate
|
|
6
|
Breather cover component
|
|
7
|
Breather
|
|
8
|
Hole cover
|
|
9
|
Oil seal (differential)
|
|
10
|
Bearing race (differential)
|
|
11
|
Drain plug and washer
|
|
12
|
Bearing race (transaxle case)
|
|
13
|
Adjustment shim
|
|
14
|
Bearing race (differential)
|
|
15
|
Adjustment shim
|
|
16
|
Oil seal (differential)
|
|
17
|
Dust boot
|
|
18
|
Spring pin
|
|
19
|
Snap ring
|
|
20
|
Selector lever
|
|
21
|
Bracket
|
|
22
|
Shift lever
|
|
23
|
Dust boot
|
|
24
|
Key
|
|
25
|
Control rod end
|
|
26
|
Spring and washer
|
|
27
|
Shift lever shaft
|
|
28
|
Oil seal
|
|
29
|
Oil passage
|

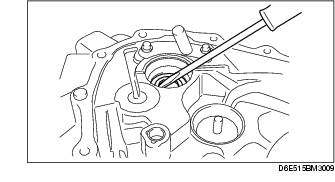

Oil Seal (Primary Shaft) Disassembly Note
1. Remove the oil seal using a flathead screwdriver.

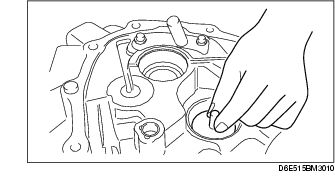

Bearing Race (Secondary Shaft) Disassembly Note
1. Remove the bearing race by lifting it and the funnel out together.

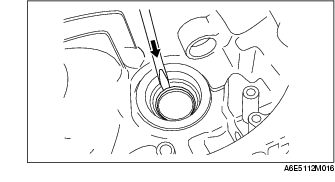

Oil Seal (Differential) Disassembly Note
1. Remove the oil seal using a flathead screwdriver.

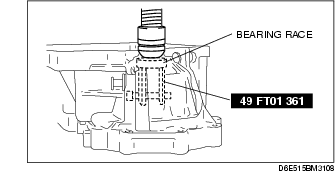

Bearing Race (Differential) Disassembly Note
1. Remove the bearing outer race using the SST.

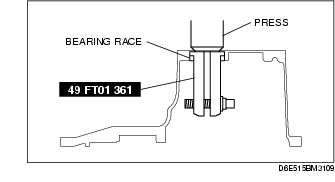

Bearing Race (Transaxle Case) Disassembly Note
1. Remove the bearing race using the SST.
