CLUTCH HOUSING AND TRANSAXLE CASE COMPONENTS ASSEMBLY [TYPE B]
id051500803813
1. Assemble in the order indicated in the table.
|
1
|
Oil passage
|
|
2
|
Oil seal (differential)
|
|
3
|
Adjustment shim
|
|
4
|
Bearing race (differential)
|
|
5
|
Adjustment shim
|
|
6
|
Bearing race (transaxle case)
|
|
7
|
Drain plug and washer
|
|
8
|
Bearing race (differential)
|
|
9
|
Oil seal (differential)
|
|
10
|
Hole cover
|
|
11
|
Breather
|
|
12
|
Breather cover component
|
|
13
|
Guide plate
|
|
14
|
Funnel
|
|
15
|
Bearing race (secondary shaft)
|
|
16
|
Oil seal (primary shaft)
|
|
17
|
Bearing race (primary shaft)
|
|
18
|
Oil seal
|
|
19
|
Spring and washer
|
|
20
|
Key
|
|
21
|
Control end
|
|
22
|
Shift lever shaft
|
|
23
|
Dust boot
|
|
24
|
Shift lever
|
|
25
|
Spring pin
|
|
26
|
Selector lever
|
|
27
|
Bracket
|
|
28
|
Snap ring
|
|
29
|
Dust boot
|

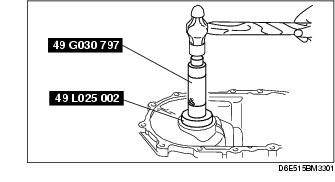

Oil Seal (Differential) Assembly Note
1. Apply transaxle oil to the new oil seal lip.
2. Install the oil seal using the SST.
Bearing Race (Differential) Assembly Note
1. Install the adjustment shim(s) and install the bearing race using the SST.
Bearing Race (Transaxle Case) Assembly Note
1. Install the adjustment shim(s) and install the bearing race using the SST.
Primary shaft side
Secondary shaft side
Oil Seal (Primary Shaft) Assembly Note
1. Apply transaxle oil to outer circumference of the oil seal.
2. Install the new oil seal using the SST.
