DTC P2243:00 [MZR 2.0 DISI i-stop]

id0102d4303600

DTC P2243:00

A/F sensor reference voltage circuit open

DETECTION CONDITION

•  The PCM monitors the A/F sensor terminal 1C voltage. If the either of the following condition is met, the PCM determines that the A/F sensor reference voltage circuit is open.

―  The A/F sensor terminal 1C voltage is specified voltage or more for 30 s.

―  The PCM detects the DTC P0134:00 while the pending code P2243:00 is stored.

MONITORING CONDITIONS

―  Drive Mode 03 (A/F sensor heater, HO2S heater, A/F sensor, HO2S and TWC Repair Verification Drive Mode)

―  Following conditions are met:

•  Engine is running

•  Battery voltage: 11—18 V

•  A/F sensor element impedance specified or more

Diagnostic support note

•  This is a continuous monitor (A/F sensor, HO2S).

•  The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.

•  PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.

•  FREEZE FRAME DATA (Mode 2)/Snapshot data is available.

•  The DTC is stored in the PCM memory.

POSSIBLE CAUSE

•  A/F sensor connector or terminals malfunction

•  PCM connector or terminals malfunction

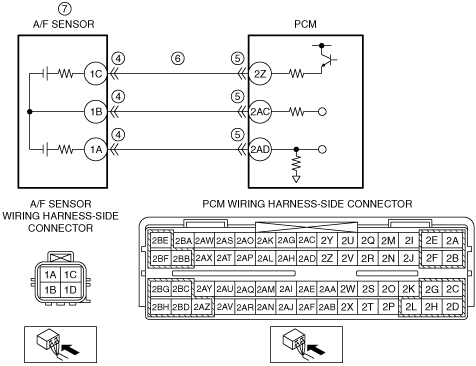

•  Open circuit in wiring harness between A/F sensor terminal 1C and PCM terminal 2Z

•  A/F sensor malfunction

•  PCM malfunction

DTC P2243:00	A/F sensor reference voltage circuit open
DETECTION CONDITION	• The PCM monitors the A/F sensor terminal 1C voltage. If the either of the following condition is met, the PCM determines that the A/F sensor reference voltage circuit is open. ― The A/F sensor terminal 1C voltage is specified voltage or more for 30 s. ― The PCM detects the DTC P0134:00 while the pending code P2243:00 is stored. MONITORING CONDITIONS ― Drive Mode 03 (A/F sensor heater, HO2S heater, A/F sensor, HO2S and TWC Repair Verification Drive Mode) ― Following conditions are met: • Engine is running • Battery voltage: 11—18 V • A/F sensor element impedance specified or more Diagnostic support note • This is a continuous monitor (A/F sensor, HO2S). • The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM. • PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle. • FREEZE FRAME DATA (Mode 2)/Snapshot data is available. • The DTC is stored in the PCM memory.
POSSIBLE CAUSE	• A/F sensor connector or terminals malfunction • PCM connector or terminals malfunction • Open circuit in wiring harness between A/F sensor terminal 1C and PCM terminal 2Z • A/F sensor malfunction • PCM malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA (MODE 2) • Perform the Freeze Frame PID Data Access Procedure. (See ON-BOARD DIAGNOSTIC TEST [MZR 2.0 DISI i-stop].) • Is the DTC P2243:00 on FREEZE FRAME DATA (Mode 2)?	Yes	Go to the next step.
1		No	Go to the troubleshooting procedure for DTC on FREEZE FRAME DATA (Mode 2). (See DTC TABLE [MZR 2.0 DISI i-stop].)
2	VERIFY FREEZE FRAME DATA (MODE 2)/SNAPSHOT DATA AND DIAGNOSTIC MONITORING TEST RESULTS HAVE BEEN RECORDED • Have the FREEZE FRAME DATA (Mode 2)/snapshot data and DIAGNOSTIC MONITORING TEST RESULTS (A/F sensor, HO2S related) been recorded?	Yes	Go to the next step.
2		No	Record the FREEZE FRAME DATA (Mode 2)/snapshot data and DIAGNOSTIC MONITORING TEST RESULTS on the repair order, then go to the next step.
3	VERIFY RELATED SERVICE INFORMATION AVAILABILITY • Verify related Service Information availability. • Is any related Service Information available?	Yes	Perform repair or diagnosis according to the available Service Information. • If the vehicle is not repaired, go to the next step.
3		No	Go to the next step.
4	INSPECT A/F SENSOR CONNECTOR CONDITION • Switch the ignition to off. • Disconnect the A/F sensor connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion). • Is there any malfunction?	Yes	Repair or replace the terminal and/or connector, then go to Step 8.
4		No	Go to the next step.
5	INSPECT PCM CONNECTOR CONDITION • Disconnect the PCM connector. • Inspect for poor connection (such as damaged/pulled-out pins, corrosion). • Is there any malfunction?	Yes	Repair or replace the terminal and/or connector, then go to Step 8.
5		No	Go to the next step.
6	INSPECT A/F SENSOR SIGNAL CIRCUIT FOR OPEN CIRCUIT • A/F sensor and PCM connectors are disconnected. • Inspect for continuity between A/F sensor terminal 1C (wiring harness-side) and PCM terminal 2Z (wiring harness-side). • Is there continuity?	Yes	Go to the next step.
6		No	Repair or replace the wiring harness for a possible open circuit, then go to Step 8.
7	INSPECT A/F SENSOR • Reconnect the A/F sensor and PCM connectors. • Inspect the A/F sensor. (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [MZR 2.0 DISI i-stop].) • Is there any malfunction?	Yes	Replace the A/F sensor, then go to the next step. (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
7		No	Go to the next step.
8	VERIFY DTC TROUBLESHOOTING COMPLETED • Make sure to reconnect all disconnected connectors. • Clear the DTC from the PCM memory using the M-MDS. (See AFTER REPAIR PROCEDURE [MZR 2.0 DISI i-stop].) • Perform the Drive Mode 03 (A/F sensor heater, HO2S heater, A/F sensor, HO2S and TWC Repair Verification Drive Mode). (See OBD DRIVE MODE [MZR 2.0 DISI i-stop].) • Is the PENDING CODE for this DTC present?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the PCM. (See PCM REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) Go to the next step.
8		No	Go to the next step.
9	VERIFY AFTER REPAIR PROCEDURE • Perform the “AFTER REPAIR PROCEDURE”. (See AFTER REPAIR PROCEDURE [MZR 2.0 DISI i-stop].) • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [MZR 2.0 DISI i-stop].)
9		No	DTC troubleshooting completed.
