DTC P1262:00 [MZ-CD 1.6]

id0102g8262800

DTC P1262:00

Fuel injector No.2 circuit high to low side short
DETECTION CONDITION
•  The PCM monitors fuel injector No.2. If the fuel injector No.2 terminal A and fuel injector No.2 terminal B lines are shorted to each other, the PCM determines that the fuel injector No.2 circuit has a malfunction.
POSSIBLE CAUSE
•  Fuel injector No.2 connector or terminal malfunction
•  Fuel injector No.2 A circuit and B circuit are shorted to each other
•  Fuel injector No.2 malfunction
•  PCM connector or terminal malfunction
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has the FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
•  Verify related service repair information availability.
•  Is any related repair information available?
Yes
Perform repair or diagnosis according to the available repair information.
•   If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
VERIFY RELATED PENDING CODE AND/OR DTC
•  Switch the ignition to ON (engine off).
•  Perform the Pending Trouble Code Access Procedure and DTC Reading Procedure.
•  Is the other PENDING CODE/DTC also present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [MZ-CD 1.6].)
No
Go to the next step.
4
INSPECT FUEL INJECTOR NO.2 CONNECTOR CONDITION
•  Switch the ignition to off.
•  Disconnect the fuel injector No.2 connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion)
•  Is there any malfunction?
Yes
Repair or replace the connector and/or terminals, then go to Step 8.
No
Go to the next step.
5

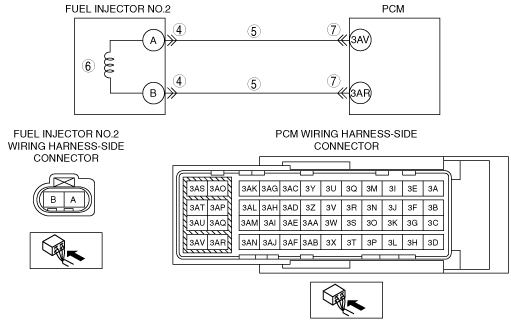

INSPECT FUEL INJECTOR NO.2 SIGNAL CIRCUIT AND GROUND CIRCUIT FOR SHORT TO EACH OTHER
•  Fuel injector No.2 and PCM connectors are disconnected.
•  Inspect for continuity between the fuel injector No.2 terminal A and B (wiring harness-side)
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to each other, then go Step 8.
No
Go to the next step.
6
INSPECT FUEL INJECTOR NO.2
•  Inspect the fuel injector No.2.
•  Is there any malfunction?
Yes
Replace the fuel injector No.2, then go to Step 8.
(See FUEL INJECTOR REMOVAL/INSTALLATION [MZ-CD 1.6].)
No
Go to the next step.
7
INSPECT PCM CONNECTOR CONDITION
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion)
•  Is there any malfunction?
Yes
Repair or replace the connector and/or terminals, then go to the next step.
No
Go to the next step.
8
VERIFY THAT DTC P1262:00 TROUBLESHOOTING IS COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Run the vehicle under the FREEZE FRAME DATA stored condition.
•  Is the same DTC present?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the PCM.
Go to the next step.
No
Go to the next step.
9
VERIFY AFTER REPAIR PROCEDURE
•  Perform the after repair procedure.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [MZ-CD 1.6].)
No
DTC troubleshooting completed.
