1
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
|
2
|
INSPECT ENGINE OIL SOLENOID VALVE CONNECTOR CONDITION
• Switch the ignition to off.
• Disconnect the engine oil solenoid valve connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector and/or terminals, then go to Step 9.
|
|
No
|
Go to the next step.
|
|
3
|

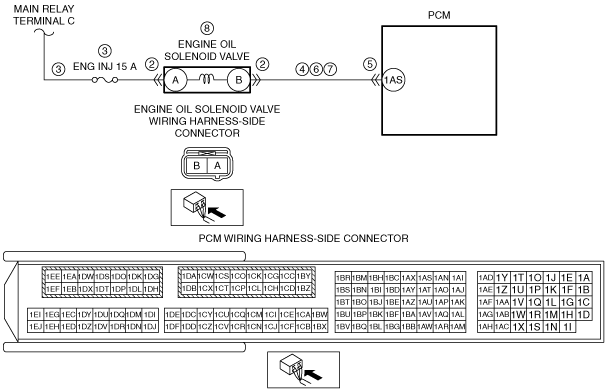

INSPECT ENGINE OIL SOLENOID VALVE POWER SUPPLY CIRCUIT FOR SHORT TO GROUND OR OPEN CIRCUIT
• Verify that the engine oil solenoid valve connector is disconnected.
• Switch the ignition to ON (engine off).
• Measure the voltage at the engine oil solenoid valve terminal A (wiring harness-side).
• Is the voltage B+?
|
Yes
|
Go to the next step.
|
|
No
|
Inspect the ENG INJ 15 A fuse.
• If the fuse is blown:
-
― Repair or replace the wiring harness for a possible short to ground.
― Replace the fuse.
• If the fuse is deteriorated:
-
― Replace the fuse.
• If the fuse is normal:
-
― Repair or replace the wiring harness for a possible open circuit.
Go to Step 9.
|
|
4
|
INSPECT ENGINE OIL SOLENOID VALVE SIGNAL CIRCUIT FOR SHORT TO GROUND
• Verify that the engine oil solenoid valve connector is disconnected.
• Switch the ignition to off.
• Inspect for continuity between engine oil solenoid valve terminal B (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|
If the short to ground circuit could be detected:
• Repair or replace the wiring harness for a possible short to ground.
If the short to ground circuit could not be detected:
• Replace the PCM (short to ground in the PCM internal circuit).
Go to Step 9.
|
|
No
|
Go to the next step.
|
|
5
|
INSPECT PCM CONNECTOR CONDITION
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the connector and/or terminals, then go to Step 9.
|
|
No
|
Go to the next step.
|
|
6
|
INSPECT ENGINE OIL SOLENOID VALVE SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
• Verify that the engine oil solenoid valve and PCM connectors are disconnected.
• Switch the ignition to ON (engine off).
• Measure the voltage at the engine oil solenoid valve terminal B (wiring harness-side).
• Is there any voltage?
|
Yes
|
Repair or replace the wiring harness for a possible short to power supply, then go to Step 9.
|
|
No
|
Go to the next step.
|
|
7
|
INSPECT ENGINE OIL SOLENOID VALVE SIGNAL CIRCUIT FOR OPEN CIRCUIT
• Verify that the engine oil solenoid valve and PCM connectors are disconnected.
• Switch the ignition to off.
• Inspect for continuity between engine oil solenoid valve terminal B (wiring harness-side) and PCM terminal 1AS (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 9.
|
|
8
|
INSPECT ENGINE OIL SOLENOID VALVE
• Inspect the engine oil solenoid valve.
• Is there any malfunction?
|
Yes
|
Replace the engine oil solenoid valve, then go to the next step.
|
|
No
|
Go to the next step.
|
|
9
|
VERIFY DTC TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the M-MDS.
• Perform the KOEO or KOER self test.
• Is the same DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the PCM.
Go to the next step.
|
|
No
|
Go to the next step.
|
|
10
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “AFTER REPAIR PROCEDURE”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
DTC troubleshooting completed.
|
