LUBRICATION SYSTEM LOCATION INDEX [MZR 2.0 DISI i-stop]

id011136800100

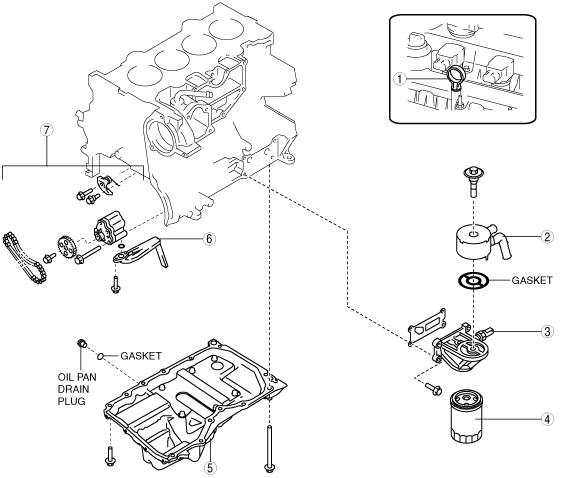

am3zzw00011689

1	Dipstick (See ENGINE OIL LEVEL INSPECTION [MZR 2.0 DISI i-stop].) (See ENGINE OIL REPLACEMENT [MZR 2.0 DISI i-stop].)
2	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
3	Oil pressure switch (See OIL PRESSURE INSPECTION [MZR 2.0 DISI i-stop].)
4	Oil filter (See OIL FILTER REPLACEMENT [MZR 2.0 DISI i-stop].)
5	Oil pan (See OIL PAN REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
6	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
7	Oil pump component (See OIL PUMP REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
