COOLING FAN COMPONENT REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo]

id011209801600

Warning

•  Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.

•  Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise 2.5 turns. Step back while the pressure escapes.

•  When you are sure all the pressure is gone, turn the cap using the cloth, and remove it.

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

3.  Remove the dipstick.

4.  Remove the air cleaner component, air cleaner bracket and fresh air duct (No.1, No.2). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

5.  Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

6.  Remove in the order indicated in the table.

7.  Install in the reverse order of removal.

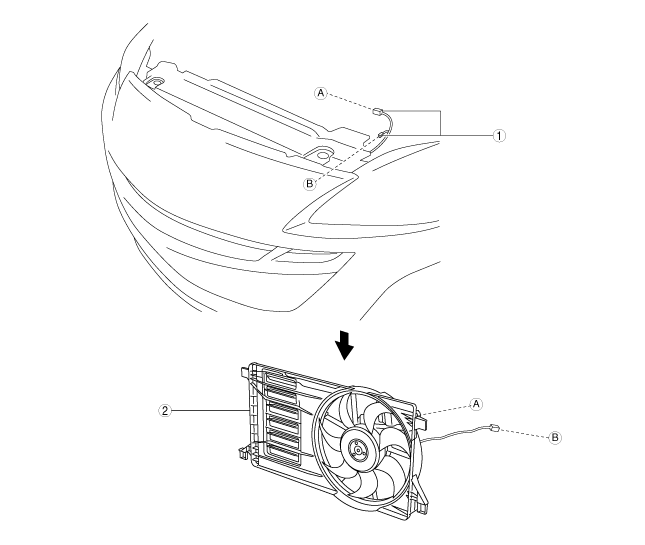

am3zzw00008616

1	Cooling fan motor connector
2	Cooling fan component (See Cooling Fan Component Removal Note.)

Cooling Fan Component Removal Note

1.  Release the left and right tabs on the lower side of the radiator by pressing them in the direction shown in the figure.

am3uuw00005222

2.  Lift the cooling fan component to remove it from the left and right insertion areas on the upper side of the radiator.

am3uuw00005223

3.  Remove the cooling fan component from below the engine compartment.
