AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION


id091600820400


Except SKYACTIV-G 2.0

1.  Lift up the vehicle.

2.  Remove the fasteners and bolts.

am3uuw00008440

3.  Move the aerodynamic under cover No.2 in the direction of the arrow shown in the figure and remove it.

Caution
•  Be careful not to damage the aerodynamic under cover No.2 during removal.

4.  Install in the reverse order of removal.


SKYACTIV-G 2.0

1.  Lift up the vehicle.

2.  Peel off the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

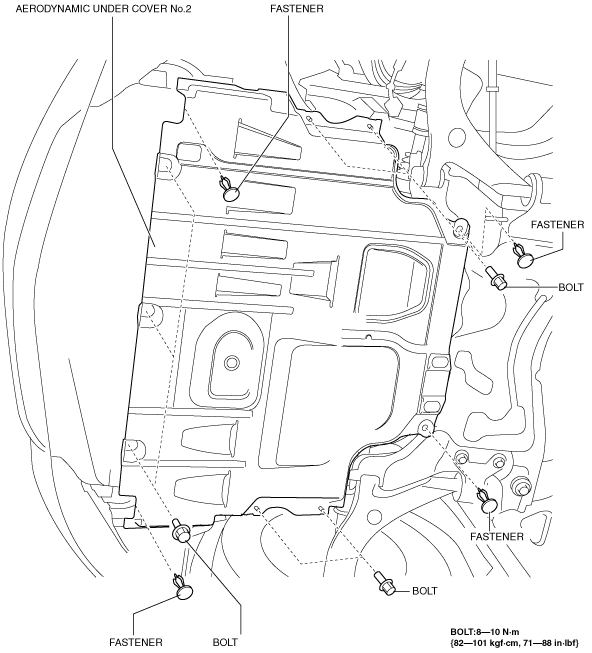

3.  Remove the fasteners and bolts.

am3uuw00008121

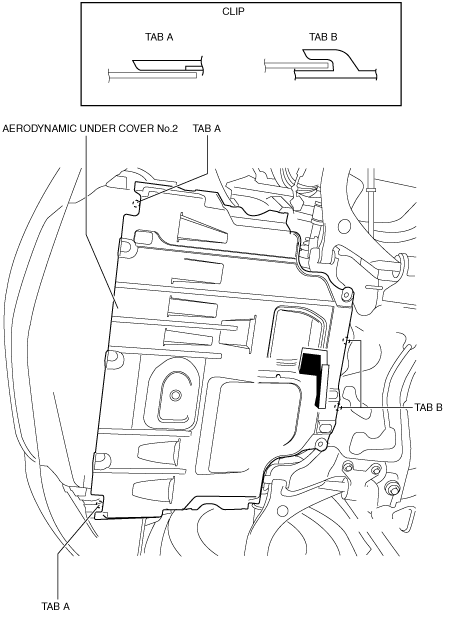

4.  Move the aerodynamic under cover No.2 in the direction of the arrow shown in the figure and while remove tabs A and B.

am3uuw00008154

Caution
•  Be careful not to damage the aerodynamic under cover No.2 during removal.

5.  Remove the aerodynamic under cover No.2.

6.  Install in the reverse order of removal.
