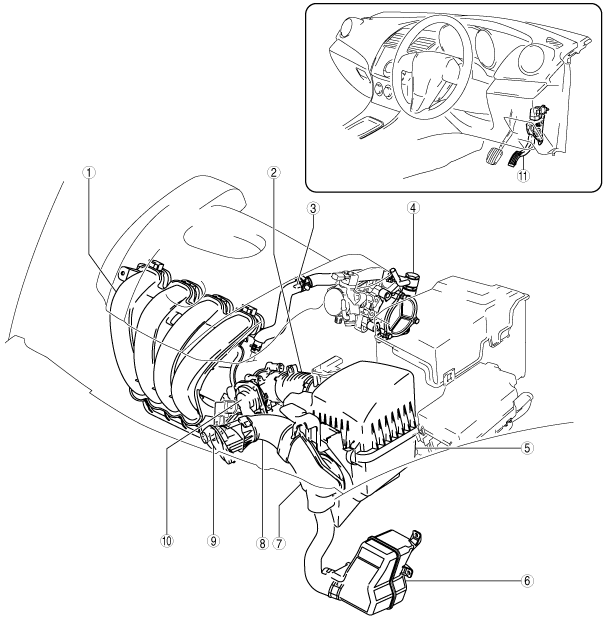

INTAKE-AIR SYSTEM LOCATION INDEX [SKYACTIV-G 2.0]

id0113z5801700

am3zzw00012036

1	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See INTAKE MANIFOLD VACUUM INSPECTION [SKYACTIV-G 2.0].)
2	Air hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
3	Check valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See CHECK VALVE INSPECTION [SKYACTIV-G 2.0].)
4	Vacuum pump (See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See VACUUM PUMP INSPECTION [SKYACTIV-G 2.0].)
5	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See AIR CLEANER ELEMENT INSPECTION [SKYACTIV-G 2.0].)
6	Resonance chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
7	Fresh-air duct No.3 (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
8	Fresh-air duct No.2 (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
9	Fresh-air duct No.1 (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
10	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See THROTTLE BODY INSPECTION [SKYACTIV-G 2.0].)
11	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
