INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0]

id0113z5801900

Warning

•  A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

am3zzw00012628

1	Fresh-air duct No.2
2	Fresh-air duct No.1
3	Water hose (See Water Hose Installation Note.)
4	Ventilation hose (See Ventilation Hose Installation Note.)
5	Air cleaner cover (See Air Cleaner Cover Removal Note.)
6	Air hose (See Air Hose Installation Note)
7	Air cleaner element
8	Air cleaner case (See Air Cleaner Case Removal Note.) (See Air Cleaner Case Installation Note.)
9	Fresh-air duct No.3 (See Fresh-air Duct No.3 Installation Note.)
10	Air cleaner bracket
11	Resonance chamber (See Resonance Chamber Removal Note.)
12	Resonance chamber bracket No.1
13	Resonance chamber bracket No.2
14	Upper radiator hose bracket
15	Throttle body
16	Vacuum hose (See Vacuum Hose Removal Note.) (See Vacuum Hose Installation Note.)
17	Evaporative hose (See Evaporative Hose Installation Note)
18	PCV hose
19	Intake manifold (See Intake Manifold Removal Note)

Air Cleaner Cover Removal Note

1.  Remove the MAF sensor/IAT sensor No.1. (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.1 REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Remove the air cleaner cover and air hose as a single unit.

3.  Remove the air cleaner cover.

Air Cleaner Case Removal Note

1.  Remove the air cleaner case and fresh-air duct No.3 as a single unit.

2.  Remove the air cleaner case.

Resonance Chamber Removal Note

1.  Remove the splash shield (LH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)

2.  Set the front mudguard (LH) out of the way. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3.  Remove the resonance chamber.

Vacuum Hose Removal Note

1.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Remove the vacuum hose.

Intake Manifold Removal Note

1.  Remove the MAP sensor/IAT sensor No.2. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

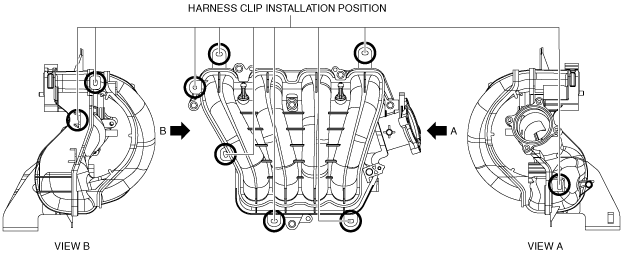

2.  Disconnect the harness clips from the intake manifold as shown in the figure.

am3zzw00012629

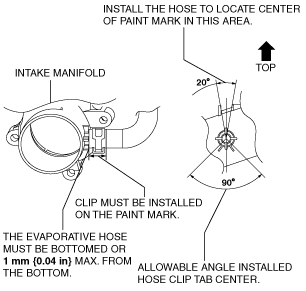

Evaporative Hose Installation Note

1.  Install the evaporative hose as shown in the figure.

am3uuw00008473

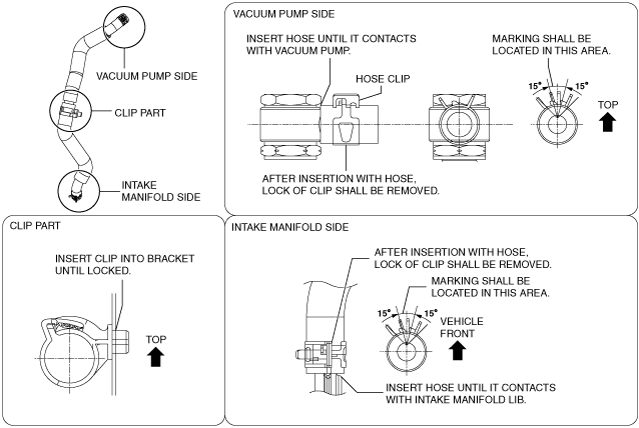

Vacuum Hose Installation Note

1.  Install the vacuum hose as shown in the figure.

am3zzw00012630

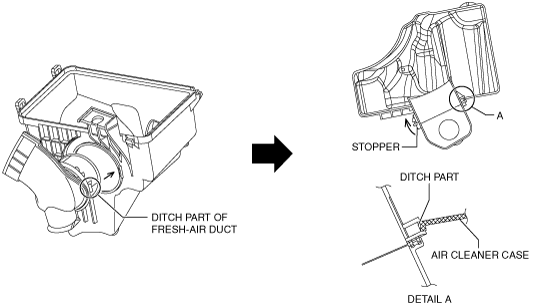

Fresh-air Duct No.3 Installation Note

1.  Install the fresh-air duct No.3 as shown in the figure.

am3uuw00008475

Air Cleaner Case Installation Note

1.  Install the air cleaner case as shown in the figure.

am3uuw00008476

Air Hose Installation Note

1.  Install the air hose as shown in the figure.

Throttle body side

am3uuw00007265

Air cleaner side

am3uuw00007266

Ventilation Hose Installation Note

1.  Install the ventilation hose as shown in the figure.

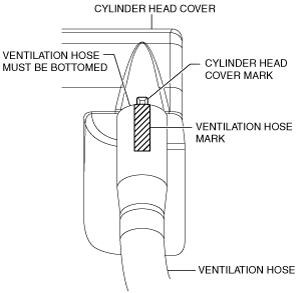

Cylinder head cover side

am3uuw00008002

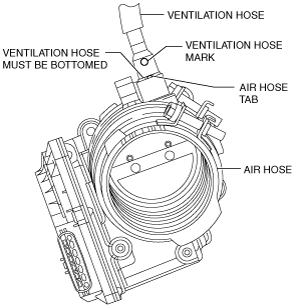

Air hose side

am3uuw00008003

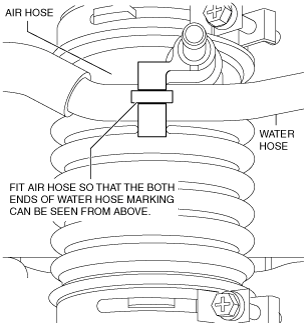

Water Hose Installation Note

1.  Install the water hose as shown in the figure.

am3uuw00008004
