FUEL SYSTEM LOCATION INDEX [MZR 2.0, MZR 2.5]

id0114d8800100

Engine Compartment Side

am3zzw00012059

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See FUEL INJECTOR INSPECTION [MZR 2.0, MZR 2.5].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)
3	Fuel pump relay (See RELAY INSPECTION.)

Fuel Tank Side

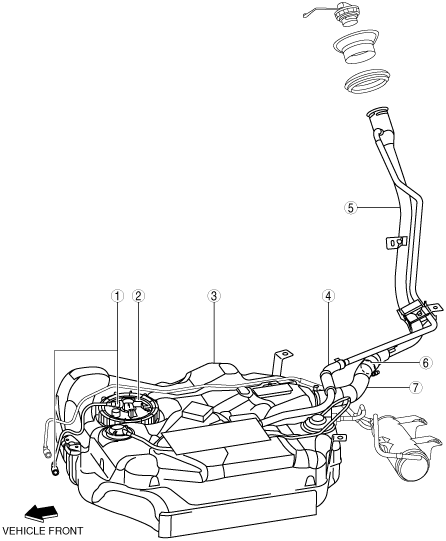

MZR 2.0 (Fuel filter (high-pressure) is a built-in type in fuel pump unit)

am3zzw00012060

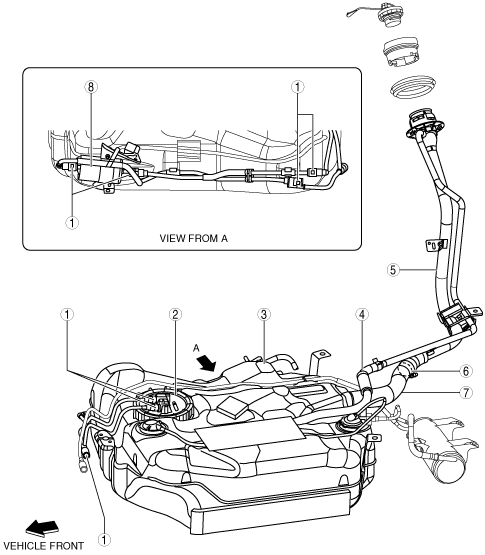

MZR 2.0 (Fuel filter (high-pressure) is not a built-in type in fuel pump unit)

am3zzw00012061

MZR 2.5 (Fuel filter (high-pressure) is a built-in type in fuel pump unit)

am3zzw00012062

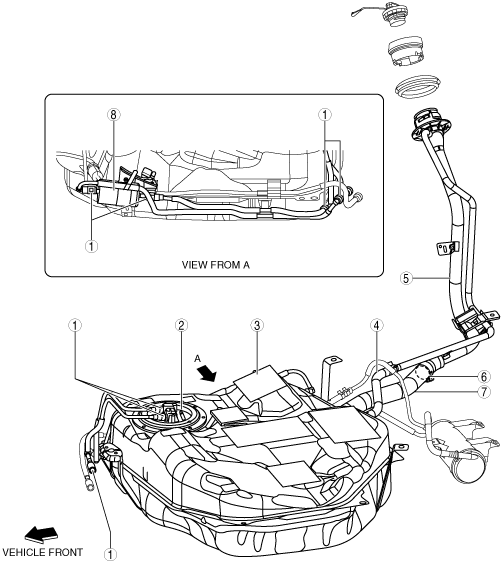

MZR 2.5 (Fuel filter (high-pressure) is not a built-in type in fuel pump unit)

am3zzw00012063

1	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [MZR 2.0, MZR 2.5].) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See FUEL PUMP UNIT INSPECTION [MZR 2.0, MZR 2.5].)
3	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See FUEL TANK INSPECTION [MZR 2.0, MZR 2.5].)
4	Breather hose (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)
5	Fuel-filler pipe (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)
6	Non-return valve (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See NON-RETURN VALVE INSPECTION [MZR 2.0, MZR 2.5].)
7	Joint hose (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)
8	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)
