PURGE SOLENOID VALVE INSPECTION [MZR 2.0 DISI i-stop]
id0116a9800900
Airflow inspection
1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
3. Remove the purge solenoid valve. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

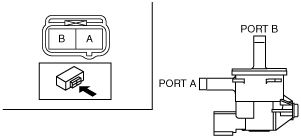

4. Inspect airflow between the ports under the following conditions.
am3zzw00012116
|
|
Measured condition |
Continuity between A—B |
|---|---|
|
When voltage is not applied between terminals A and B
|
No airflow
|
|
When voltage is applied between terminals A and B
|
Airflow detected
|
