PCM REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5]

id0140e4802400

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

3.  Remove the following items: (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

•  Battery

•  PCM cover No.1

4.  Disconnect the PCM connector. (See PCM Connector Connection Note.)

5.  Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

6.  Remove in the order indicated in the table.

U.K. specs.

am3zzw00011824

1	PCM cover No.2
2	PCM
3	PCM bracket

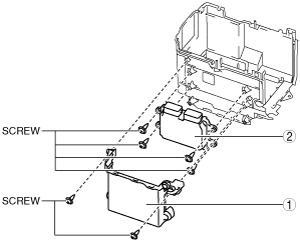

Except for U.K. specs.

am3zzw00011825

1	PCM cover No.2
2	PCM

7.  Install in the reverse order of removal.

8.  When replacing the PCM, perform the following:

•  PCM configuration (See PCM CONFIGURATION [MZR 2.0, MZR 2.5].)

•  Immobilizer system-related parts programming

(See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [KEYLESS ENTRY SYSTEM].)

(See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

PCM Connector Connection Note

Caution

•  If the PCM connector is connected incorrectly it could be damaged. When connecting the PCM connector, connect it using the following procedure.

•  If the PCM connector is inserted at an angle and the lever is moved, the connector could be damaged. Verify that the PCM connector is inserted straight.

am3zzw00011826

1.  Verify that the PCM connector lever is tilted towards the wiring harness side as shown in the figure.

am3zzw00011827

2.  Insert the PCM connector straight until it contacts the PCM and verify that the lever reverts upward naturally.

3.  Push the lever until a click is heard.

am3zzw00011828
