HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 2.0]

id0140f4804000

Warning

•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3.  Lift up the vehicle.

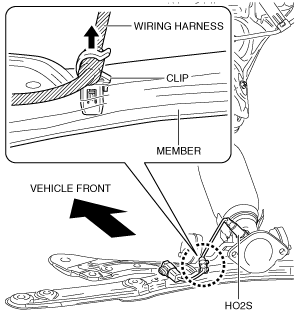

4.  Remove the clip from the member.

am3uuw00007246

5.  Disconnect the HO2S connector.

6.  Remove the HO2S using the SST.

am3uuw00007247

7.  Install in the reverse order of removal.
