MASTER CYLINDER REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6, MZR 2.0, MZR 2.5, MZ-CD 1.6, MZR-CD 2.2]
id0411008013r1
1. Remove the battery and battery tray. (L.H.D.) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

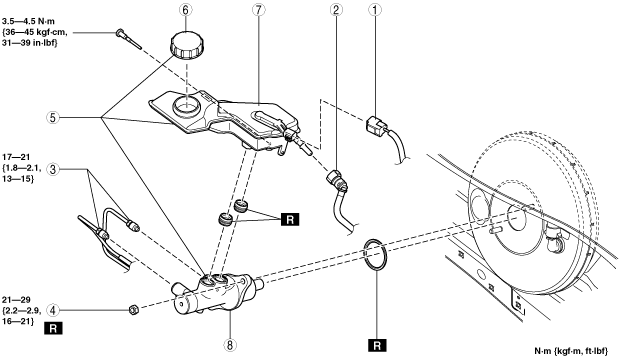

L.H.D.
am3zzw00005720
|
|
1
|
Brake fluid level sensor connector
|
|
2
|
Reserve hose (MTX)
|
|
3
|
Brake pipe
|
|
4
|
Nut
|
|
5
|
Master cylinder
|
|
6
|
Cap
|
|
7
|
Reserve tank
|
|
8
|
Cylinder component
|

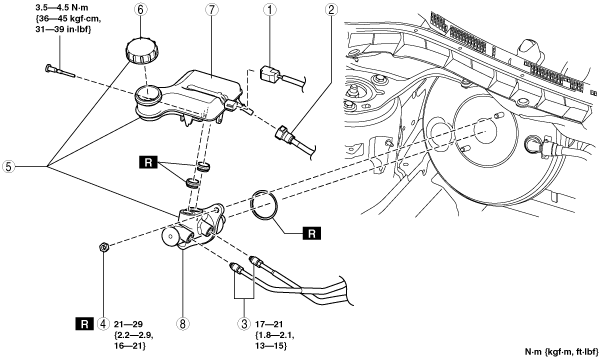

R.H.D.
am3zzw00005721
|
|
1
|
Brake fluid level sensor connector
|
|
2
|
Reserve hose (MTX)
|
|
3
|
Brake pipe
|
|
4
|
Nut
|
|
5
|
Master cylinder
|
|
6
|
Cap
|
|
7
|
Reserve tank
|
|
8
|
Cylinder component
|
Reserve Hose (MTX) Removal Note

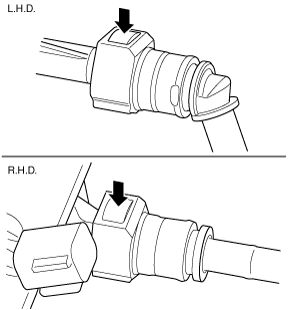

1. Remove the reserve hose from the reserve tank while pressing the point indicated by the arrow in the figure.
am3zzw00007235
|
Reserve Hose (MTX) Installation Note
1. Insert the reserve hose to the reserve tank until a click is heard.
2. Verify that the reserve hose is firmly installed by pulling it, and push it into the reserve tank again.
