ABS HU/CM REMOVAL/INSTALLATION

id041300801400

Caution

•  The internal parts of the ABS HU/CM could be damaged if dropped. Be careful not to drop the ABS HU/CM. Replace the ABS HU/CM if it is subjected to an impact.

•  Do not separate the ABS HU and ABS CM unless replacing them, otherwise the ABS HU/CM may not function properly. When replacing them with new ones, always perform procedures according to the instructions included with the new parts.

•  If the ABS HU/CM configuration is not completed, it could result in an unexpected accident due to the ABS being inoperative. If the ABS HU/CM or ABS CM is replaced, always use the automatic configuration function so that the ABS operation conditions are correct.

Note

•  When the ignition is switched to ON or the engine is started after the ABS HU/CM or ABS CM has been replaced, the ABS CM reads data from the instrument cluster via CAN communication to perform automatic configuration.

1.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  Switch the ignition to ON or start the engine, and maintain this condition for approx. 30 s to allow the ABS HU/CM automatic configuration to be performed.

5.  Clear the DTCs from the memory. (See ON-BOARD DIAGNOSIS [ABS].)

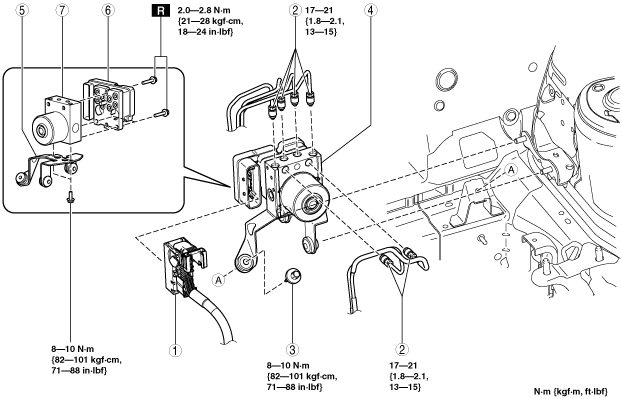

am3zzw00008005

1	Connector (See Connector Removal Note.) (See Connector Installation Note.)
2	Brake pipe (See Brake Pipe Removal Note.) (See Brake Pipe Installation Note.)
3	Bolt
4	ABS HU/CM component, bracket (See ABS HU/CM Component, Bracket Removal Note.)
5	Bracket
6	ABS CM
7	ABS HU

Connector Removal Note

1.  Pull the connector cover up in the direction of the arrow while pressing the tab of the connector cover.

am3uuw00002722

2.  Pull the connector toward the vehicle front and remove it.

Brake Pipe Removal Note

1.  Place an alignment mark on the brake pipe and ABS HU/CM.

am3uuw00002723

2.  Apply protective tape to the connector to prevent brake fluid from entering.

3.  Disconnect the brake pipe.

ABS HU/CM Component, Bracket Removal Note

1.  As shown in the figure, move the bracket in the direction of the arrow and remove the ABS HU/CM component and bracket from the body.

am3uuw00002724

Brake Pipe Installation Note

1.  Align the marks made before removal and install the brake pipe to the ABS HU/CM referring to the figure.

am3uuw00002725

Connector Installation Note

1.  After connecting the connector, verify that the connector cover is completely pushed in.

am3zzw00011137
