TRANSAXLE OIL REPLACEMENT [F35M-R]

id0515a1800100

1. Park the vehicle on level ground.

2. Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

3. Remove the hole cover.

4. Remove the drain plug with the washer.

5. Drain the oil into a suitable container.

6. Install a new washer and the drain plug.

Tightening torque

39—59 N·m {4.0—6.0 kgf·m, 29—43 ft·lbf}

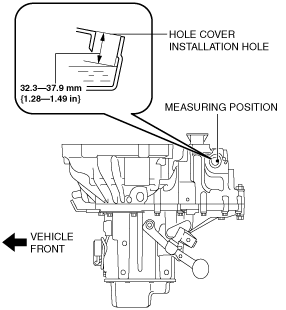

7. Add the specified amount and type of oil through the hole cover installation hole until the level reaches as shown in the figure.

am3zzw00005924

Manual transaxle oil grade

API service GL-4

Manual transaxle oil viscosity

SAE 75W-80

Manual transaxle oil capacity (approx. quantity)

2.91 L {3.07 US qt, 2.56 lmp qt}

8. Install the hole cover.

am3zzw00005925

Tightening torque

8—11 N·m {80—112 kgf·cm, 70—97 in·lbf}

9. Install the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)
