STEERING SHIFT SWITCH INSPECTION [FS5A-EL]
id051721291600
1. Disconnect the steering switch connector. (See STEERING SWITCH REMOVAL/INSTALLATION.)
2. Inspect the continuity/resistance between the steering switch terminals J and P.
am3zzw00009710
|
Item |
Test condition |
Continuity/Resistance (ohm) |
Inspection Items |
---|---|---|---|
LH up switch
|
LH up switch released
|
No continuity
|
• Steering shift switch (LH)
• Related harness
|
LH up switch depressed
|
353—367
|
||
RH up switch
|
RH up switch released
|
No continuity
|
• Steering shift switch (RH)
• Related harness
|
RH up switch depressed
|
353—367
|
||
LH down switch
|
LH down switch released
|
No continuity
|
• Steering shift switch (LH)
• Related harness
|
LH down switch depressed
|
608—632
|
||
RH down switch
|
RH down switch released
|
No continuity
|
• Steering shift switch (RH)
• Related harness
|
RH down switch depressed
|
608—632
|
Steering Shift Switch (LH) Inspection
1. Inspect the continuity as indicated in the table.
am3zzw00009711
|
am3zzw00009724
|
Steering Shift Switch (RH) Inspection

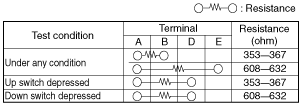

1. Inspect the resistance as indicated in the table.
am3zzw00009712
|
am3zzw00009725
|
