SELECTOR LEVER INSPECTION

id051800297000

1.  Switch the ignition to ON.

2.  Perform the following procedures to inspect the selector lever.

•  If there is any malfunction, adjust the selector cable. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

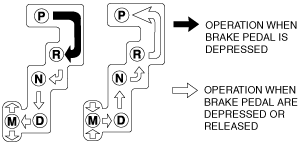

(1)  Verify that the selector lever can be operated as shown in the figure.

L.H.D.

am3uuw00002301

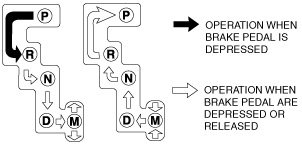

R.H.D.

am3zzw00005066

(2)  Verify that the selector lever can be operated smoothly and moderately.
