DTC B1318 [WATER HEATER SYSTEM]
id070228815500
|
DTC B1318 |
Input voltage low |
|---|---|
|
DETECTION CONDITION
|

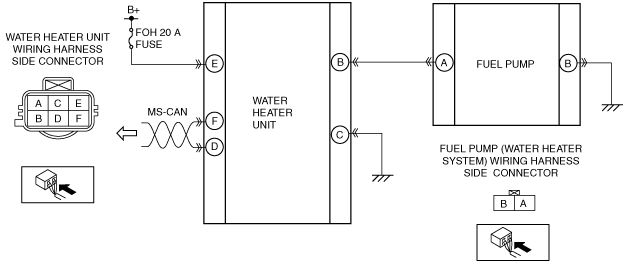

• Voltage detected at water heater unit terminals E is less than 9 V.
|
|
POSSIBLE CAUSE
|
• Battery malfunction
• FOH 20 A fuse
• Short to ground between battery and water heater unit terminal E
• Open circuit between battery and water heater unit terminal E
• Water heater unit malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
INSPECT BATTERY VOLTAGE
• Measure battery voltage.
• Is voltage more than 9 V?
|
Yes
|
Go to the next step.
|
|
No
|
Battery is weak.
• Inspect charging system.
|
||
|
2
|
INSPECT WIRING HARNESS BETWEEN FOH 20 A FUSE AND WATER HEATER UNIT
• Measure voltage at water heater unit connector terminal E.
• Is voltage more than 9 V?
|
Yes
|
Go to the next step.
|
|
No
|
Repair the fuse or wiring harness.
|
||
|
3
|
INSPECT WATER HEATER UNIT
• Clear the DTC.
• Perform the KOEO Self Test.
• Is the same DTC present?
|
Yes
|
Replace the water heater unit.
|
|
No
|
Go to the next step.
|
||
|
4
|
VERIFY AFTER REPAIR PROCEDURE
• Perform after repair procedure.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC troubleshooting.
|
|
No
|
Troubleshooting completed.
|
||
