DETERMINING OPEN CIRCUIT LOCATION (HS-CAN) [MULTIPLEX COMMUNICATION SYSTEM (L.H.D. (EXCEPT MZR-CD 2.2, MZR 2.0 DISI i-stop))]

id0902k4837900

Caution

• Perform the following malfunction diagnosis only when it is diagnosed with an open circuit by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [MULTIPLEX COMMUNICATION SYSTEM (L.H.D. (EXCEPT MZR-CD 2.2, MZR 2.0 DISI i-stop))].

• If the malfunctioning part is detected in the communication line, before disconnecting the related connector for inspection, press the connector in the connection direction to verify that there is no looseness or disconnection.

• When disconnecting the connector, verify that there is no damage, deformation, or corrosion of the connector terminals.

1. Verify the CAN system-related module DTCs and the failed module on the M-MDS screen.

2. Apply the communication error DTC and the failed module to DTC output pattern and malfunctioning part, and select the possible cause for the diagnostic result and the reference for the inspection item.

Note

• The open circuit location can be determined by the DTCs indicated in DTC output pattern and malfunctioning part chart. DTCs not listed in the chart are not used for the determination of the open circuit location.

3. Inspect the possible cause and inspection item of the applicable malfunctioning part.

4. After repairing, return to CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [MULTIPLEX COMMUNICATION SYSTEM (L.H.D. (EXCEPT MZR-CD 2.2, MZR 2.0 DISI i-stop))] and verify that the repairs have been completed.

DTC output pattern and malfunctioning part

Cross (×): Communication error-related DTC and failed module

M-MDS display		DTC output pattern and malfunctioning part
DTC output module	DTC	DTC output pattern and malfunctioning part
PCM (PCM [MZR 1.6])	U0121:00						×
	U0131:00				×
	U0155:00																		×
PCM (PCM [MZR 2.0])	U0101:00		×
	U0121:00						×
	U0155:00																		×
PCM (PCM [MZR 2.3 DISI Turbo])	U0121:00						×
	U0131:00				×
	U0140:00								×
	U0155:00																		×
PCM (PCM [MZ-CD 1.6])	U0121:00						×
PCM (PCM [MZ-CD 1.6])	U0140:00								×
TCM^*1 (TCM [FS5A-EL])	U0100:00	×
TCM^*1 (TCM [FS5A-EL])	U0121:00						×
EPS (EHPAS control module)	U0100	×		×
	U0140								×
	U0155																		×
ABS^*2 (DSC HU/CM)	U0100:00	×		×		×
	U0101:00		×	×		×
	U0140:00								×
	U0155:00																		×
ABS^*3 (ABS HU/CM)	U0100:00	×		×		×
ABS^*3 (ABS HU/CM)	U0155:00																		×
BCM/GEM (BCM)	U0100:00	×		×		×		×
	U0101:00		×	×		×		×
	U0121:00						×	×
	U0151:00												×
	U0214:00														×
RVM^*4 (Rear vehicle monitoring control module (RH))	U0100:00	×		×		×		×		×
	U0101:00		×	×		×		×		×
	U0121:00						×	×		×
	U0140:00								×	×
	U0155:00																		×
RCM (SAS control module)	U0155																		×
RKE^*5 (Keyless control module)	U0100:00	×		×		×		×		×		×		×
	U0101:00		×	×		×		×		×		×		×
	U0121:00						×	×		×		×		×
AFS^*6 (AFS control module)	U0100:00	×		×		×		×		×		×		×		×
AFS^*6 (AFS control module)	U0140:00								×	×		×		×		×
IC (Instrument cluster)	U0100:00	×		×		×		×		×		×		×		×		×
	U0101:00		×	×		×		×		×		×		×		×		×
	U0121:00						×	×		×		×		×		×		×
	U0131:00				×	×		×		×		×		×		×		×
	U0140:00								×	×		×		×		×		×
	U0151:00												×	×		×		×
	U0182:00																×	×
	U0214:00														×	×		×
	U0232:00										×	×		×		×		×
M-MDS display module		[Fail] display pattern
PCM		×		×		×		×		×		×		×		×		×
TCM^*1			×	×		×		×		×		×		×		×		×
EPS					×	×		×		×		×		×		×		×
ABS^{2, 3}							×	×		×		×		×		×		×
BCM/GEM									×	×		×		×		×		×
RVM^*4											×	×		×		×		×
RCM													×	×		×		×
RKE^*5															×	×		×
AFS^*6																	×	×
IC																			×
Diagnostic result
Possible cause and inspection item		A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R
Reference page		A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R

*1 :ATX

*2 :With DSC

*3 :With ABS

*4 :With rear vehicle monitoring system

*5 :With advanced keyless entry and push button start system

*6 :With AFS (adaptive front lighting system)

Inspection item

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between PCM and branch A

• PCM malfunction

System wiring diagram

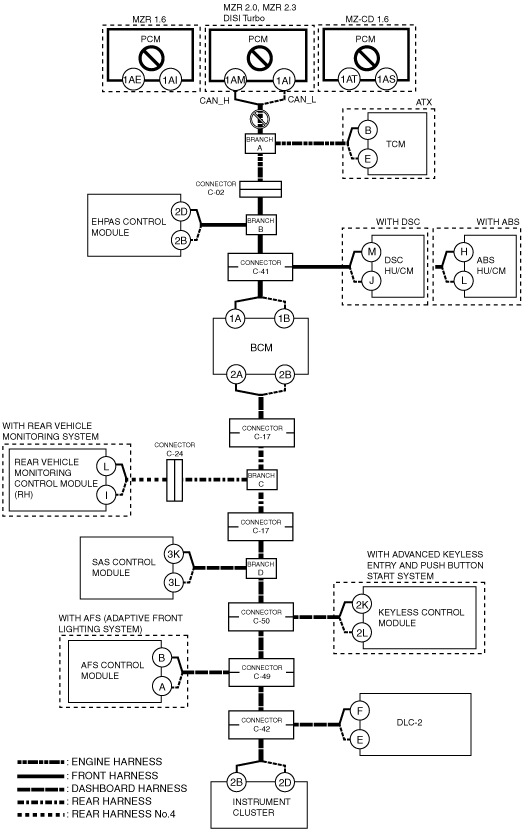

am3zzw00010455

Possible cause

• PCM connector

• Wiring harness between PCM terminal 1AM and branch A (MZR 2.0, MZR 2.3 DISI Turbo)

• Wiring harness between PCM terminal 1AI and branch A (MZR 2.0, MZR 2.3 DISI Turbo)

• Wiring harness between PCM terminal 1AE and branch A (MZR 1.6)

• Wiring harness between PCM terminal 1AI and branch A (MZR 1.6)

• Wiring harness between PCM terminal 1AT and branch A (MZ-CD 1.6)

• Wiring harness between PCM terminal 1AS and branch A (MZ-CD 1.6)

• PCM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between TCM and branch A

• TCM malfunction

System wiring diagram

am3zzw00010456

Inspection item

• TCM connector

• Wiring harness between TCM terminal B and branch A

• Wiring harness between TCM terminal E and branch A

• TCM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch A and connector C-02

• Open circuit in wiring harness between connector C-02 and branch B

• Connector C-02 malfunction

System wiring diagram

am3zzw00010457

Inspection item

• Connector C-02

• Wiring harness between branch A and connector C-02

• Wiring harness between connector C-02 and branch B

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between EHPAS control module and branch B

• EHPAS control module malfunction

System wiring diagram

am3zzw00010458

Inspection item

• EHPAS control module connector

• Wiring harness between EHPAS control module terminal 2D and branch B

• Wiring harness between EHPAS control module terminal 2B and branch B

• EHPAS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch B and connector C-41

System wiring diagram

am3zzw00010459

Inspection item

• Connector C-41

• Wiring harness between branch B and connector C-41

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between DSC HU/CM and connector C-41 (with DSC)

• Open circuit in wiring harness between ABS HU/CM and connector C-41 (with ABS)

• Connector C-41 malfunction

• DSC HU/CM malfunction (with DSC)

• ABS HU/CM malfunction (with ABS)

System wiring diagram

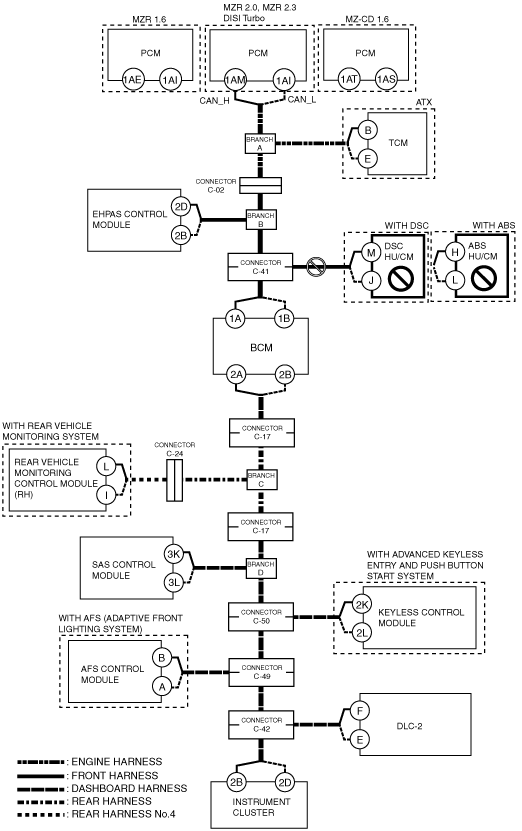

am3zzw00010460

Inspection item

• DSC HU/CM connector (with DSC)

• ABS HU/CM connector (with ABS)

• Wiring harness between DSC HU/CM terminal M and connector C-41 (with DSC)

• Wiring harness between DSC HU/CM terminal J and connector C-41 (with DSC)

• Wiring harness between ABS HU/CM terminal H and connector C-41 (with ABS)

• Wiring harness between ABS HU/CM terminal L and connector C-41 (with ABS)

• Connector C-41

• DSC HU/CM (with DSC)

• ABS HU/CM (with ABS)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-41 and BCM

• BCM malfunction

System wiring diagram

am3zzw00010462

Inspection item

• BCM connector

• Wiring harness between connector C-41 and BCM terminal 1A

• Wiring harness between connector C-41 and BCM terminal 1B

• BCM

― Between BCM terminals 1A and 2A

― Between BCM terminals 1B and 2B

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• BCM malfunction

System wiring diagram

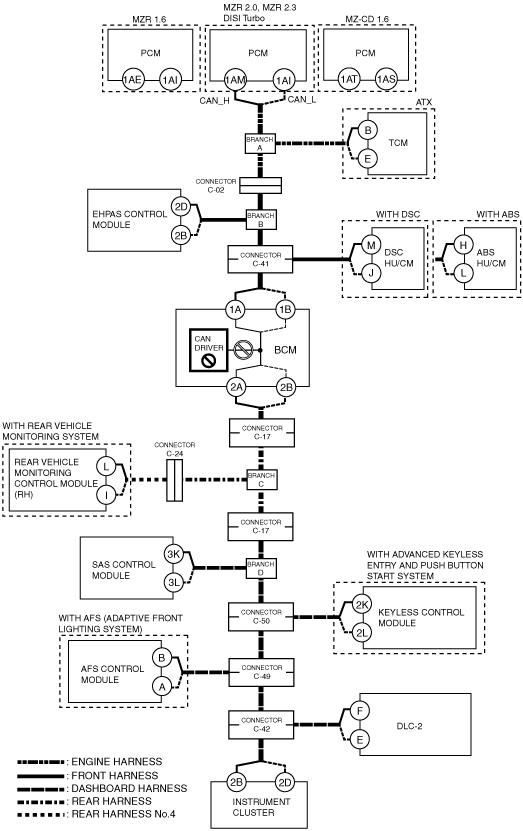

am3zzw00010463

Inspection item

• BCM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between BCM and connector C-17

• Open circuit in wiring harness between connector C-17 and branch C

• Connector C-17 malfunction

• BCM malfunction

System wiring diagram

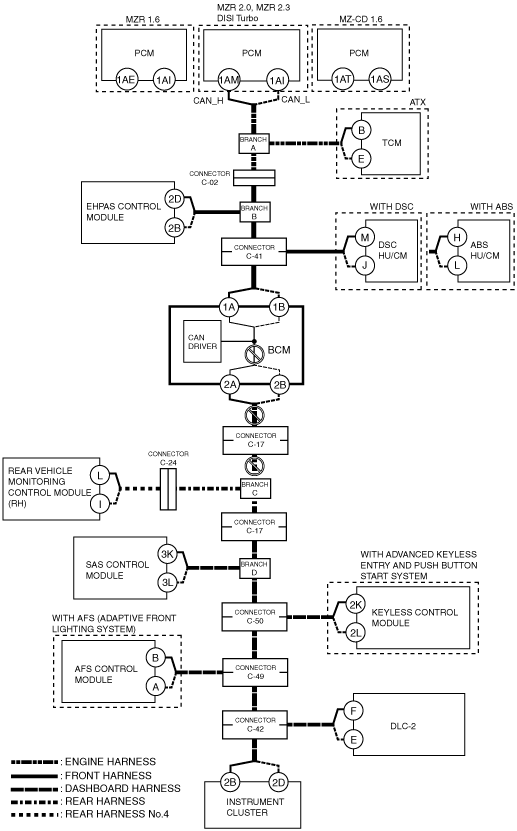

am3zzw00010464

Inspection item

• BCM connector

• Connector C-17

• Wiring harness between BCM terminal 2A and connector C-17

• Wiring harness between BCM terminal 2B and connector C-17

• Wiring harness between connector C-17 and branch C

• BCM

― Between BCM terminals 1A and 2A

― Between BCM terminals 1B and 2B

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between rear vehicle monitoring control module (RH) and connector C-24

• Open circuit in wiring harness between connector C-24 and branch C

• Connector C-24 malfunction

• Rear vehicle monitoring control module (RH) malfunction

System wiring diagram

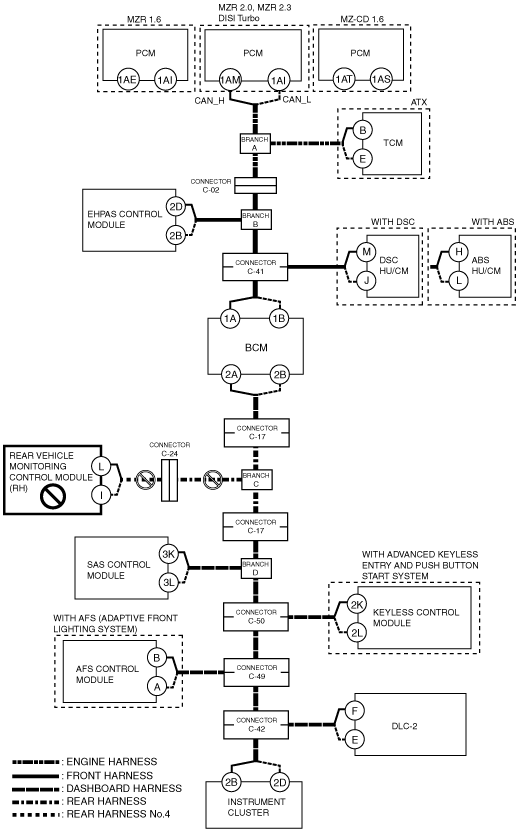

am3zzw00010465

Inspection item

• Rear vehicle monitoring control module (RH) connector

• Connector C-24

• Wiring harness between rear vehicle monitoring control module (RH) terminal L and connector C-24

• Wiring harness between rear vehicle monitoring control module (RH) terminal I and connector C-24

• Wiring harness between connector C-24 and branch C

• Rear vehicle monitoring control module (RH)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch C and connector C-17

• Open circuit in wiring harness between connector C-17 and branch D

• Connector C-17 malfunction

System wiring diagram

am3zzw00010466

Inspection item

• Connector C-17

• Wiring harness between branch C and connector C-17

• Wiring harness between connector C-17 and branch D

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between SAS control module and branch D

• SAS control module malfunction

System wiring diagram

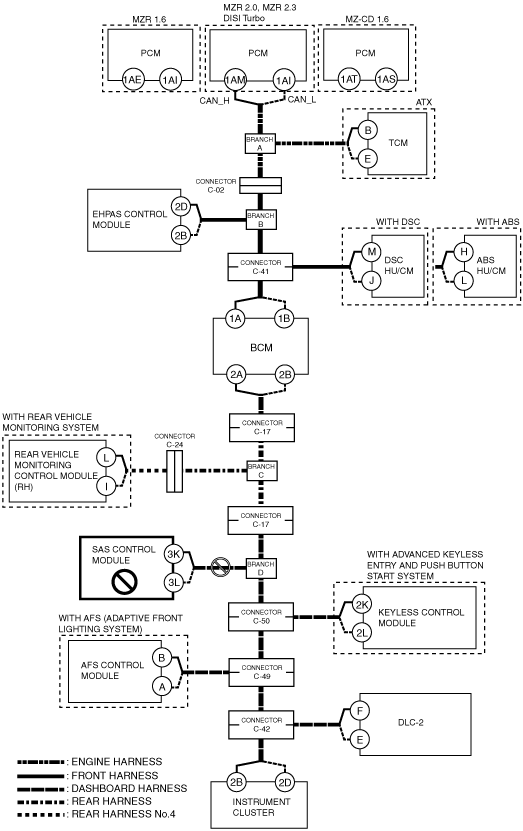

am3zzw00010467

Inspection item

• SAS control module connector

• Wiring harness between SAS control module terminal 3K and branch D

• Wiring harness between SAS control module terminal 3L and branch D

• SAS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch D and connector C-50

• Connector C-50 malfunction

System wiring diagram

am3zzw00010468

Inspection item

• Connector C-50

• Wiring harness between branch D and connector C-50

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between keyless control module and connector C-50

• Connector C-50 malfunction

• Keyless control module malfunction

System wiring diagram

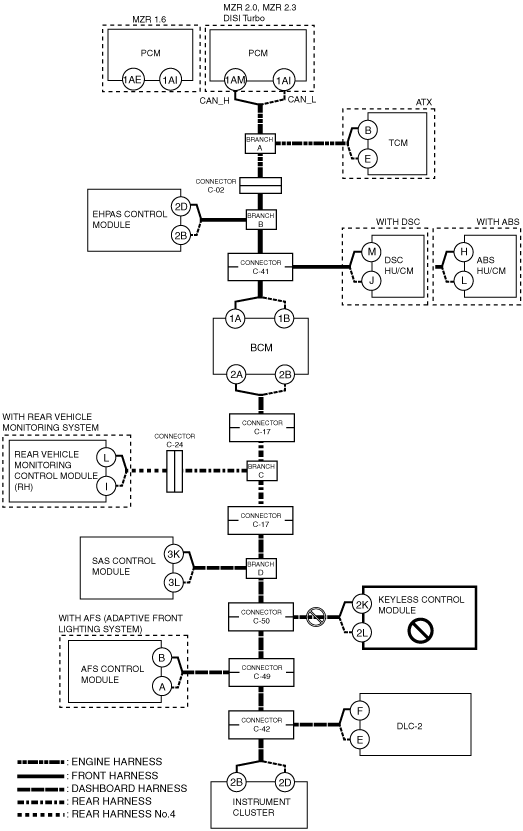

am3zzw00010469

Inspection item

• Keyless control module connector

• Connector C-50

• Wiring harness between keyless control module terminal 2K and connector C-50

• Wiring harness between keyless control module terminal 2L and connector C-50

• Keyless control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-50 and connector C-49

• Connector C-50 malfunction

• Connector C-49 malfunction

System wiring diagram

am3zzw00010470

Inspection item

• Connector C-50

• Connector C-49

• Wiring harness between connector C-50 and connector C-49

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between AFS control module and connector C-49

• Connector C-49 malfunction

• AFS control module malfunction

System wiring diagram

am3zzw00010471

Inspection item

• AFS control module connector

• Connector C-49

• Wiring harness between AFS control module terminal B and connector C-49

• Wiring harness between AFS control module terminal A and connector C-49

• AFS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-49 and connector C-42

• Connector C-49 malfunction

• Connector C-42 malfunction

System wiring diagram

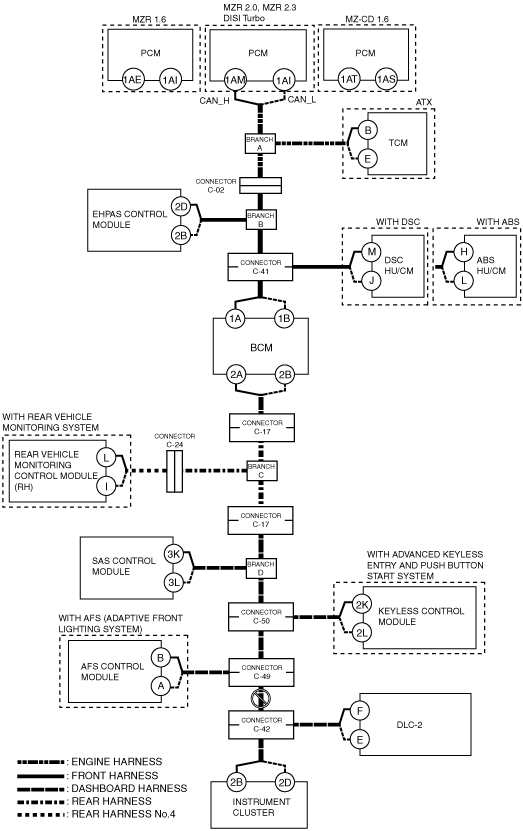

am3zzw00010472

Inspection item

• Connector C-49

• Connector C-42

• Wiring harness between connector C-49 and connector C-42

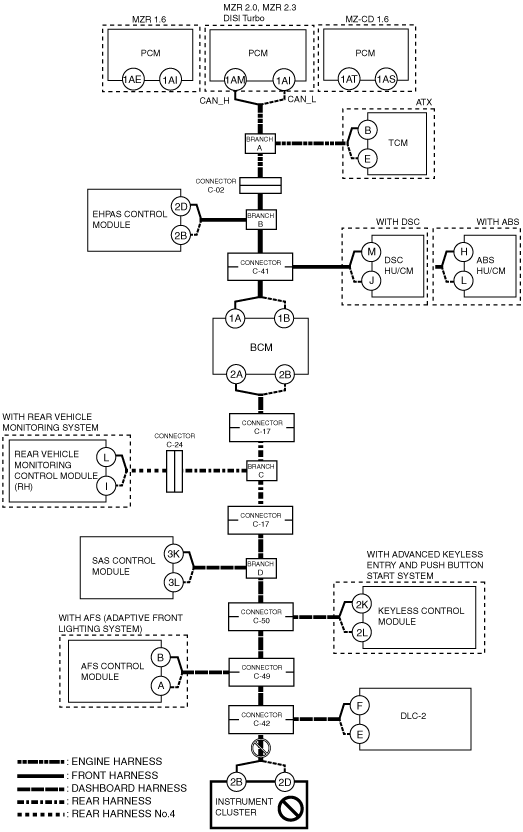

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-42 and instrument cluster

• Connector C-42 malfunction

• Instrument cluster malfunction

System wiring diagram

am3zzw00010473

Inspection item

• Instrument cluster connector

• Connector C-42

• Wiring harness between connector C-42 and instrument cluster terminal 2B

• Wiring harness between connector C-42 and instrument cluster terminal 2D

• Instrument cluster
