REAR SEAT BACK FRAME REMOVAL/INSTALLATION

id091300912500

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

2.  Remove the rear buckle installation bolt. (See REAR BUCKLE REMOVAL/INSTALLATION.)

3.  Remove the rear seat back. (See REAR SEAT BACK REMOVAL/INSTALLATION.)

4.  Remove the headrest.

5.  Open the fasteners.

6.  Detach the hooks.

am3zzw00006543

7.  Remove the child-restraint seat anchor covers in the order of (1), (2) as shown in the figure.

am3uuw00003548

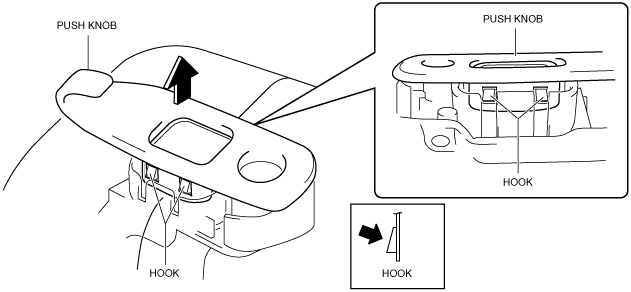

8.  Remove the push knob while remove the hooks in the direction of arrow shown in the figure.

am3zzw00005680

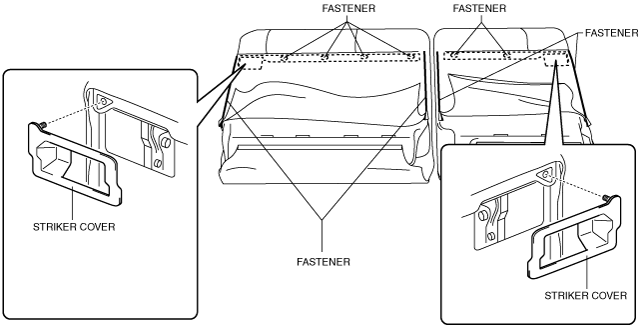

9.  Open the fastener, remove the fastener and striker cover.

am3uuw00003550

10.  Remove the bolt then remove the rear seat center armrest.(Vehicles with the rear seat center armrest)

am3zzw00006544

11.  Peal back the rear seat pad, release the pole guide tabs in the direction of arrow (3) shown in the figure, then pull out the pole guides in the direction of arrow (4).

am3uuw00003552

12.  Remove the screws, then remove the belt cover in the direction of arrow shown in the figure.

am3uuw00003553

13.  Open the fasteners.

14.  Remove the seat back frame from the seat back pad by pulling it in the direction of the arrow.(5HB)

am3uuw00003554

15.  Remove the nut, then remove the rear seat belt.(5HB)

am3uuw00003555

16.  Install in the reverse order of removal.
