FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION

id091400511200

1.  The following actuators and switches are integrated with the front door latch and lock actuator. Inspect the front door latch and lock actuator according to each inspection procedure for the following items.

•  Front door lock actuator (See FRONT DOOR LOCK ACTUATOR INSPECTION.)

•  Door lock-link switch (See DOOR LOCK-LINK SWITCH INSPECTION.)

•  Door latch switch (See FRONT DOOR LATCH SWITCH INSPECTION.)

•  Front door key cylinder (See FRONT DOOR KEY CYLINDER SWITCH INSPECTION.)

L.H.D.

LH

am3zzw00006160

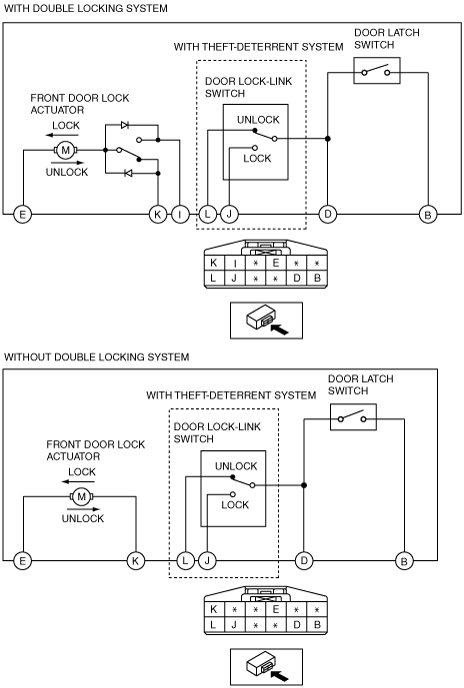

RH

am3zzw00006161

R.H.D.

LH

am3zzw00006162

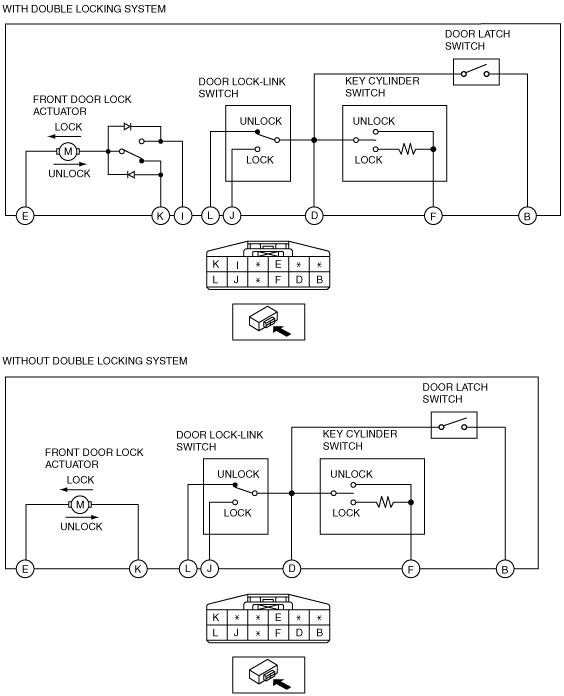

RH

am3zzw00006163
