DOOR LOCK-LINK SWITCH INSPECTION

id091400511500

Front Door Lock-link Inspection

1. To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 80 mm {3.1 in}.

am3uuw00003160

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

3. Remove the following parts:

(1) Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2) Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(3) Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(4) Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(5) Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

(6) Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4. If the door lock condition is to be inspected, pull the door lock-link switch cable, or press it in.

5. Verify that the continuity is as indicated in the table.

am3uuw00004540

am3uuw00008364

• If not as indicated in the table, replace the front door latch and lock actuator.

Rear Door Lock-link Inspection

1. Fully open the rear door glass.

3. Remove the following parts:

(1) Regulator handle (Vehicles without rear power window) (See REGULATOR HANDLE REMOVAL.) (See REGULATOR HANDLE INSTALLATION.)

(2) Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(3) Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(4) Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(5) Rear power window motor (Vehicles with rear power window) (See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

(6) Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)

(7) Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

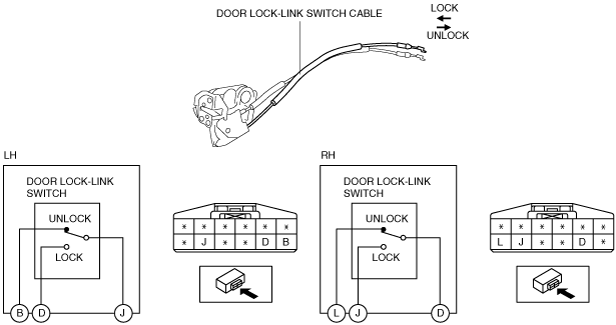

4. If the door lock condition is to be inspected, pull the door lock-link switch cable, or press it in.

5. Verify that the continuity is as indicated in the table.

am3uuw00004540

am3uuw00008365

• If not as indicated in the table, replace the rear door latch and lock actuator.
