TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION

id091400513300

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

2.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

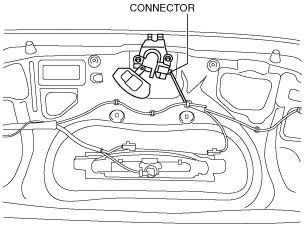

3.  Disconnect the connector.

am3uuw00003008

4.  Remove the bolts.

am3zzw00006168

5.  Remove the trunk lid latch and release actuator.

6.   Install in the reverse order of removal.
