INTRUDER SENSOR REMOVAL/INSTALLATION


id091400517200

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

2.  Remove the interior light. (See INTERIOR LIGHT REMOVAL/INSTALLATION.)

3.  Remove the intruder sensor cover. (See INTRUDER SENSOR COVER REMOVAL/INSTALLATION.)

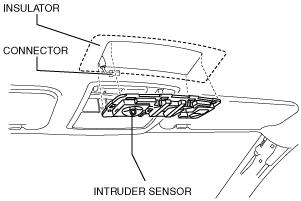

4.  Remove the intruder sensor from the insulator.

am3zzw00005109

5.  Disconnect the intruder connector.

6.  Install in the reverse order of removal.
