AERODYNAMIC UNDER COVER NO.1 REMOVAL/INSTALLATION


id091600820300

1.  Lift up the vehicle.

2.  Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

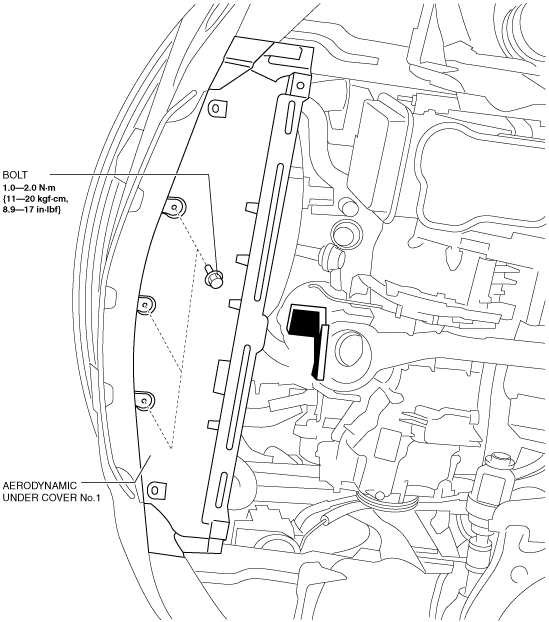

3.  Remove the bolts.

am3zzw00012343

4.  Remove the aerodynamic under cover No.1 in the direction of the arrow shown in the figure.

Caution
•  Be careful not to damage the aerodynamic under cover No.1 during removal.

5.  Install in the reverse order of removal.
