B-PILLAR UPPER TRIM REMOVAL/INSTALLATION

id091700802100

1.  Remove the following parts:

(1)  Adjuster anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(2)  Upper anchor installation bolts on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(3)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Partially peel back the seaming welt.

3.  Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

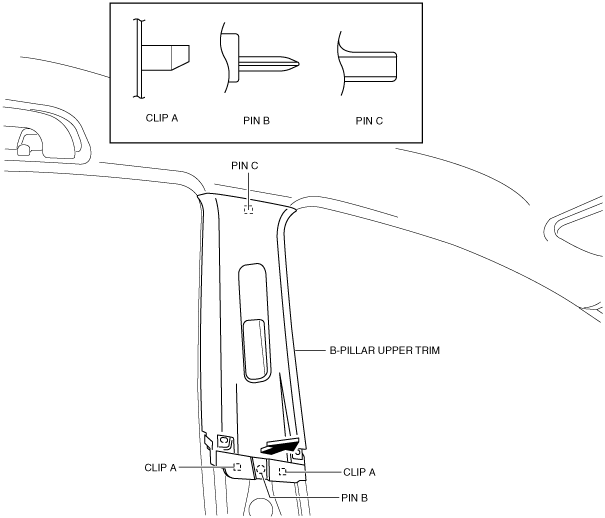

4.  Grasp the lower end of the B-pillar upper trim, pull it in the direction of the arrow shown in the figure, and remove clips A, pin B, and pin C.

am6zzw00004541

5.  Remove the B-pillar upper trim in the direction of the arrow shown in the figure.

am3uuw00004777

Caution

•  When removing the B-pillar upper trim, be careful not to damage the tabs.

6.  Install in the reverse order of removal.
