DECORATION PANEL REMOVAL/INSTALLATION

id091700806600

L.H.D.

1. Remove the following parts:

(1) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

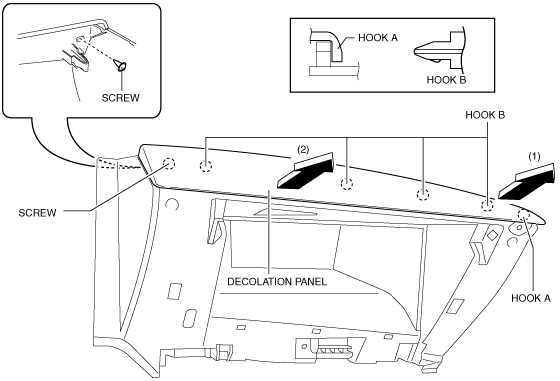

2. Remove the screw.

3. Pull the decoration panel in the direction of the arrow (1), (2) shown in the figure, while remove the hook A and hooks B.

am3zzw00006582

4. Remove the decoration panel.

5. Install in the reverse order of removal.

R.H.D.
