EXHAUST SYSTEM [SKYACTIV-D 2.2]

id0115z7125800

Outline

• By employing an exhaust gas passage in the cylinder head, the exhaust manifold has been eliminated.

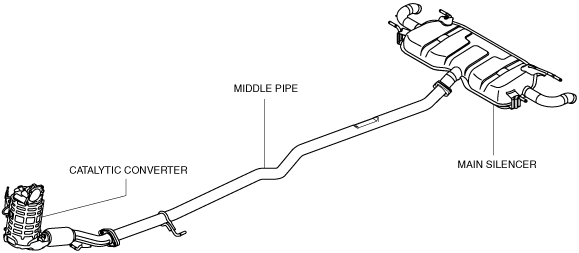

Structural view

am6zzn00002516

System diagram

ac5wzn00001973

Structure

• The exhaust system consists of the following parts:

Part name

Reference

Main silencer

(See MAIN SILENCER [SKYACTIV-D 2.2].)

Middle pipe

―

Catalytic converter

(See CATALYTIC CONVERTER [SKYACTIV-D 2.2].)

Part name	Reference
Main silencer	(See MAIN SILENCER [SKYACTIV-D 2.2].)
Middle pipe	―
Catalytic converter	(See CATALYTIC CONVERTER [SKYACTIV-D 2.2].)
